HYDRAULIC AGITATOR
HYDRAULIC AGITATOR
TECHNICAL SUMMARY
The hydraulic agitator uses its own axial vibration to improve the effectiveness of drilling pressure transmission and reduce the friction between the BHA and the wellbore. The hydraulic agitator is suitable for all drilling modes, especially in directional drilling operations with downhole motor. During such drilling modes, it can effectively improve the transmission of drilling weight and reduce torsional vibration.

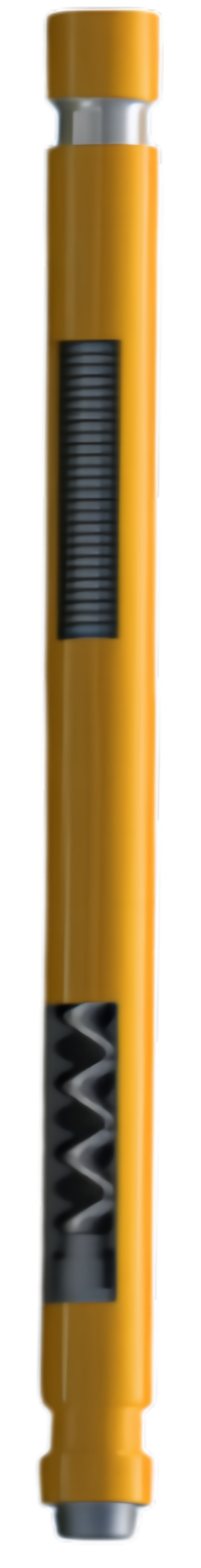

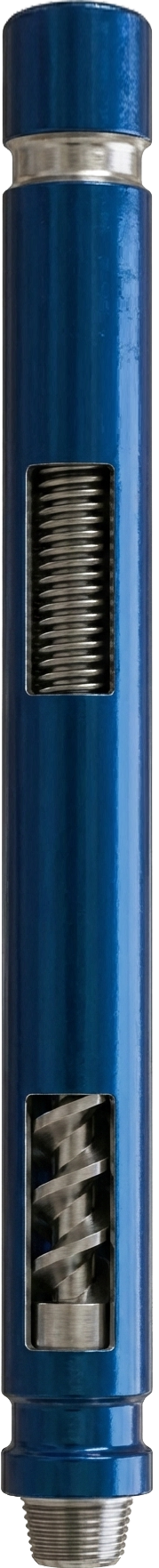

PRODUCT STRUCTURE
1. Power Section
2. Valve and Bearing Section
3. Oscillating sub
SPECIFICATION
|
Tool O.D. (in) |
Flow Rate (l/s) |
Pressure Drop (Mpa) |
Frequency (Hz) |
Max.Working Temp. (°C) |
Threads Connection |
Well Size (in) |
|
8" |
31～63 |
3.0～4.0 |
9～18 |
150 |
6-5/8"REG |
10-5/8"～13-1/2" |
|
6-3/4" |
25～38 |
2.0～4.0 |
13～19 |
150 |
NC50 |
8-1/2"～9-7/8" |
|
4-3/4" |
9～17 |
2.0～4.0 |
11～20 |
150 |
NC38 |
5-7/8"～7-7/8" |
|
3-3/4" |
5～10 |
2.0～4.0 |
11～20 |
150 |
2-7/8"REG |
4-1/2"～5-1/2" |
|
2-7/8" |
3～9 |
2.0～4.0 |
15 |
150 |
2-3/8PAC |
/ |
