CASING BRUSH
TECHNICAL SUMMARY

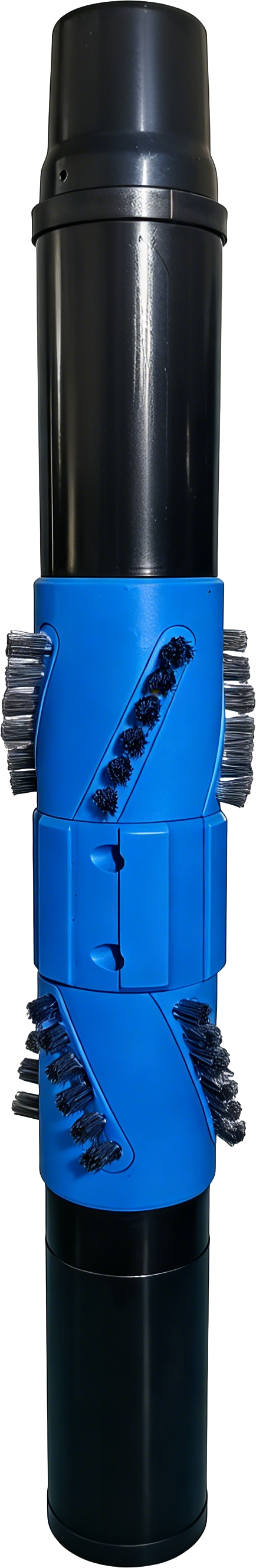

As an essential precision cleaning tool for well completion and workover, the casing brush uses high-tensile steel brush filaments to tackle fine debris—including rust, mud residues, and small burrs—that scrapers may leave behind. Its multi-row, high-density bristle design ensures 360° contact with the casing inner wall, delivering thorough, scratch-free cleaning without compromising casing integrity.
CASING BRUSH
CASING BRUSH
|
Model |
ID |
Sleeve OD |
Casing weight |
Connection |
Max. Use tension |
Max. Use torque |
|
mm |
mm |
ppf |
KN |
KN.m |
||
|
GS4 1/2" |
19 |
93 |
9.5-15.1PPF |
2 3/8REG |
527 |
2.5 |
|
GS5-5 1/2" |
19 |
102 |
14-38PPF |
2 3/8REG |
527 |
2.5 |
|
GS7" |
31.8 |
150 |
17-29PPF |
NC38 |
1600 |
9.6 |
|
GS9 5/8" |
50.8 |
211.6 |
32.3-53.5PPF |
NC50 |
2200 |
30 |
|
GS10 3/4" |
50.8 |
241.3 |
32.75-60.7PPF |
NC50 |
4200 |
30 |
|
GS13 3/8" |
71.4 |
305 |
48-72PPF |
6 5/8REG |
6400 |
52 |
SPECIFICATION
