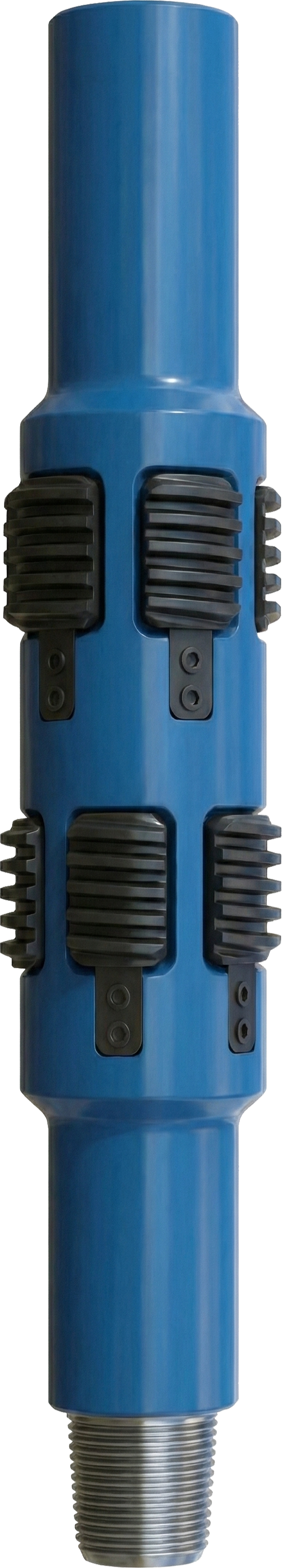

CASING SCRAPER
TECHNICAL SUMMARY
The casing scraper is a core tool for wellbore cleaning, built to clean casing inner walls of residual cement, scale, burrs, and debris. Its retractable blade assembly fits 4½” to 9⅝” casing sizes, using high-strength cutting edges to clear obstructions efficiently while preserving casing integrity.
Compatible with API connections (NC26, 3½” REG, etc.), it ensures unobstructed passage for subsequent downhole tools. This field-ready scraper cuts cleaning-related downtime, boosting wellbore readiness and supporting optimal flow efficiency in onshore/offshore oilfield operations.
CASING SCRAPER
|
Model |
Max. OD of blade stretch out (mm) |
Min. OD of blade stretch out(mm) |
Connection |
Casing Size (in) |
|
GX114 |
106 |
95 |
NC26 |
4 1/2 |
|
GX127 |
118 |
105 |
NC26 |
5 |
|
GX140 |
130 |
117 |
NC31 |
5 1/2 |
|
GX168 |
158 |
141 |
3 1/2 REG |
6 5/8 |
|
GX178 |
166 |
149 |
3 1/2 REG |
7 |
|
GX245 |
230 |
212 |
4 1/2REG |
9 5/8 |
SPECIFICATION
