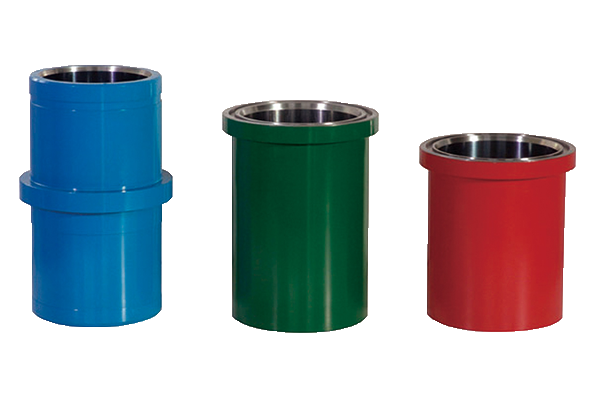

CYLINDER LINER

TECHNICAL SUMMARY

Orchid Energy could supply a variety of cylinder liners, including ceramic cylinder liners, high chromium bimetallic cylinder liners, high-frequency quenching, and hard chromium plated single metal cylinder liners. Whether drilling in mountainous areas, deserts, plains, or oceans, our cylinder liners have demonstrated unparalleled excellent performance and quality stability in diverse drilling conditions, winning praise from customers.

GENERAL TYPES OF MUD PUMP VALVE

1. Chrome liner
2. Hardened steel liner
3. Chrome-plated liner

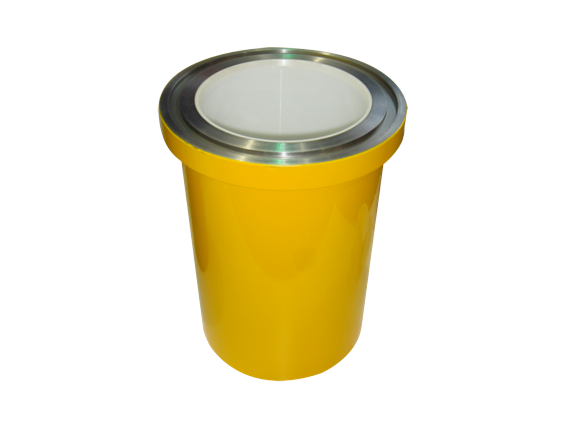

4. Zirconia ceramic liner

CYLINDER LINER

SPECIFICATION

Size of Liner

(Metric)

90mm / 100mm / 110mm / 120mm / 130mm / 140mm / 150mm / 160mm / 170mm / 180mm

Size of Liner

(Imperial)

4” / 4 1/2” / 5” 5 1/2” / 6” 6 1/4” / 6 1/2” / 6 3/4” / 7” / 7 1/2” / 8”

The types of mud pumps that Orchid Energy's cylinder liners can adapt

Emsco: F-350 / F-500 / F-650/ F-800 / F-1000/ F-1300 / F-1600

Gardner Denver: TEE / PAH / PZ-7/ PZ-8 / PZ-9 / PZ-10 / PZ-11

Ideco: T-500 / T-800 / T-1000 / T-1300 / T-1600

NOV: 7-P-50 / 8-P-80 / 9-P-100/ 10-P-130 / 12-P-160  / 14-P-220

Oilwell: A-850-PT / A-1100-PT / A-1400-PT / A-1700-PT

Bomco:  F-500 / F-800 / F-1000/ F-1300 / F-1600/ F-2200HL

Wirth: TPK 1000 / TPK 1300 / TPK 1600/ TPK 2000 / TPK 2200

Aplex: SC -170L / SC-230 / SC-300

Russia Pump: UNB600 / UNBT950 / UNBT950 / UNBT1180
