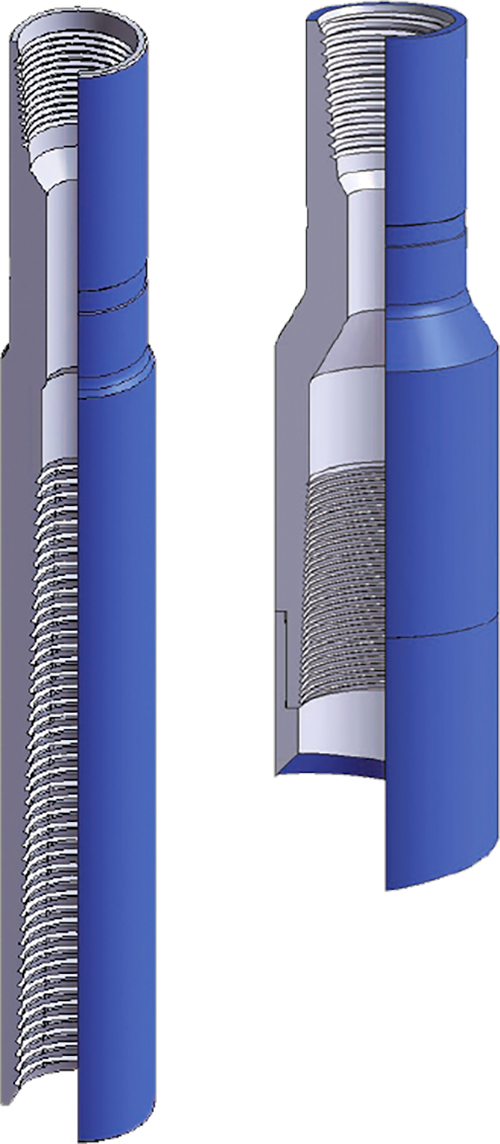

DIE COLLAR
DIE COLLAR
TECHNICAL SUMMARY
The Die Collars is a special external fishing tool which is engaged on the outside wall of tubular objects such as tubing and drill pipe etc. It is also used to catch the cylinder junks which have no inner bore, or the inner bore is blank off. It can work with right- or left-hand drill pipe and other tools to achieve all kinds of fishing job.
SPECIFICATION
|
Model |
Sub OD mm(inch) |
Conn. |
Wicker Range mm(inch) |
|
MZ-NC26 |
89(3 1/2) |
NC26 |
31～57(1 1/4 ～ 8 1/4) |
|
MZ-NC31 |
105(4 1/8) |
NC31 |
89～93(3 1/2 ～ 3 11/16) |
|
MZ-NC38 |
121(4 3/4) |
NC38 |
90～110(3 9/16 ～ 4 5/16) |
|
MZ-NC50 |
165(6 1/2) |
NC50 |
120～135(4 3/4 ～ 5 5/16) |
|
MZ-NC61 |
229(9 1/32) |
NC61 |
183～208(7 3/16 ～ 8 3/16) |
