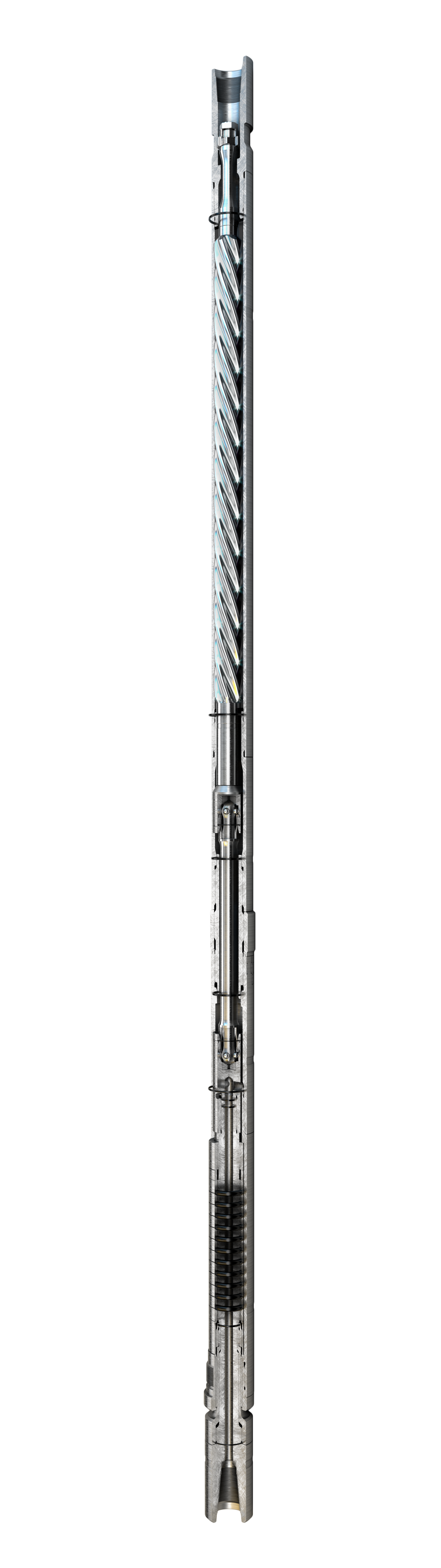

DRILLING MOTORS

TECHNICAL SUMMARY

Drilling motors, also known as downhole mud motors,  are the key component of bottom hole assembly(BHA), providing efficient and precise drilling operations. These high-performance motors, generate rotational force to drive the drill bit. With advanced technology and superior design, drilling motors offer enhanced torque, speed, and reliability.

Drilling motor is a positive displacement motor(PDM). The high drilling fluid enters into the motor converting high fluid power to mechanical energy and the rotor drives the shaft and bit rotating. We can produce drilling motors for hole size from 1 ⅞” to 26". We also can design and manufacture according to customers' special requirements.

ASSEMBLIES

CLASSIFICATION

1) Bent Housing Motor
We can provide fixed bend motor, single bend motor, double bend motor and adjustable bend housing motors.(adjustable angle from 0-3°) which can meet different kickoff requirement.
2) High Temperature Motor
Drilling motor Temp. range are ≤120℃,120-150℃ and 150-175℃which can meet different well running condition even in very harshest environment.
3) Hollow Rotor Motor
To increase hydraulic horsepower and upward speed of mud stream, rotor is manufactured into hollow rotor with nozzles. Thus, motor total flow rate is equal to the sum of the flow rate through seal cavity and rotor.
4) Even Wall Motor
Even wall motor not only enhances the impact resistance and deformation resistance of the rubber on the inner surface of the stator housing, but also the rubber will not cause problems such as rubber aging and rubber drop during the vulcanization process, so that the rubber vulcanization effect can be achieved better to ensure the service life of drilling motor. Under the same pressure drop, the size of the motor can be shortened and mud motor kick off rate can be further improved.
5) Rotor Coating Technology
Regular chrome coating could be adopted as clients requirement. Also we can do Tungsten carbide coating on rotor surface which can enable the rotor to work normally in saturated saltwater mud and to prevent the corrosion of chrome plated rotor in saturated saltwater.

SPECIFICATION

Model	Unit	5LZ43×7.0V	5LZ54×7.0VI	5LZ60×7.0V	5LZ73×7.0III	5LZ73×7.0V	5LZ89×7.0III	5LZ95×7.0IV	5LZ95×7.0V
Bit Size	in	1 7/8-3	2 3/8-3 1/2	3 1/8-4 3/8	3 3/8-4 3/8	3 3/8-4 3/8	4 1/2-6	4 5/8-6	4 5/8-6
OD	mm	44	56	60.5	74	74	89	96	96
ABH	°	-	-	-	0-3	0-3	0-3	0-4	0-4
Lobe		5/6	5/6	5/6	5/6	5/6	5/6	5/6	5/6
Stage		5	6	5	3	5	3	4	5
Pressure	Mpa	4	4.8	4	2.4	4	2.4	3.2	4
Flow Rate	l/s	1-1.7-2.5	1.3-2.2-3.2	1.3-2.2-3.2	2-5-7	3-6-9	3-6.5-10	5-8-12	5.4-9.3-13.2
Flow Per Revolution	l/r	0.27	0.34	0.56	0.9	1.07	1.53	2.5	2.6
Bit Speed	rpm	222-378-555	230-390-565	140-237-344	133-333-467	168-336-504	118-255-392	120-192-288	126-217-308
Torque	N·m	150	320	438	320	820	730	1590	2070
Max.torque	N·m	225	480	657	480	1230	1095	2385	3105
Output Power	Kw	2.6-6.4	4.4-10.8	6.4-15.7	4.8-17	15-43	10-30	20-48	27-66
Weight on Bit	KN	2.5	4	4	15	15	20	25	25
Max. Weight on Bit	KN	6	8	8	20	20	30	50	50
Connection	up	1 AMMT	1 1/2 REG	1 1/2 REG	2 3/8 TBG	2 3/8 TBG	2 3/8 REG	2 7/8 REG	2 7/8 REG
	down	1 AMMT	1 1/2 REG	1 1/2 REG	2 3/8 REG	2 3/8 REG	2 3/8 REG	2 7/8 REG	2 7/8 REG
Length	mm	2967	3587	4153	3670	4189	3430	4835	5630
Weight	Kg	25	56	64	85	100	128	160	170



Model	Unit	5LZ120×7.0IV	5LZ120×7.0V	7LZ120×7.0III	5LZ127×7.0V	5LZ127×7.0VIII	7LZ127×7.0IV	7LZ165×7.0V	5LZ165×7.0V
Bit Size	in	5 7/8-7 7/8	5 7/8-7 7/8	5 7/8-7 7/8	5 7/8-7 7/8	5 7/8-7 7/8	5 7/8-7 7/8	8 3/8-9 7/8	8 3/8-9 7/8
OD	mm	122	122	122	127	127	127	167	167
ABH	°	0-3	0-3	0-3	0-3	0-3	0-3	0-3	0-3
Lobe		5/6	5/6	7/8	5/6	5/6	7/8	7/8	5/6
Stage		4	5	3	5	8	4	5	5
Pressure	Mpa	3.6	4	3	4	6.5	3.2	4	4
Flow Rate	l/s	10-14-18	9-13-16	10-15-19	9-13-16	9.5-13-19	9-14-18	21.5-30-38	18-24-28
Flow Per Revolution	l/r	5	4.8	7.6	6	3.9	6.9	14.3	10
Bit Speed	rpm	120-170-220	110-162-200	80-118-150	90-130-160	145-198-290	78-121-156	90-126-160	106-142-165
Torque	N·m	2800	2280	3680	3040	4160	3580	7400	6200
Max.torque	N·m	4900	3990	6620	5320	6240	6265	13320	10850
Output Power	Kw	40-72	36-64	32-62	36-64	63-126	41-81	86-152	72-112
Weight on Bit	KN	40	40	40	50	50	50	100	100
Max. Weight on Bit	KN	60	60	60	70	70	70	160	160
Connection	up	3 1/2REG	3 1/2REG	3 1/2REG	3 1/2REG	3 1/2REG	3 1/2REG	4 1/2REG	4 1/2REG
	down	3 1/2REG	3 1/2REG	3 1/2REG	3 1/2REG	3 1/2REG	3 1/2REG	4 1/2REG	4 1/2REG
Length	mm	6517	5715	7125	6547	8431	6547	8233	8317
Weight	Kg	374	333	409	441	566	441	1028	1044



Model	Unit	5LZ172×7.0V	5LZ172×7.0VI	7LZ172×7.0V	7LZ172×7.0VI	5LZ197×7.0V	5LZ197×7.0VI	7LZ197×7.0IV	7LZ197×7.0V
Bit Size	in	8 3/8-9 7/8	8 3/8-9 7/8	8 3/8-9 7/8	8 3/8-9 7/8	9 7/8-12 1/4	9 7/8-12 1/4	9 7/8-12 1/4	9 7/8-12 1/4
OD	mm	174	174	174	174	197	197	197	197
ABH	°	0-3	0-3	0-3	0-3	0-3	0-3	0-3	0-3
Lobe		5/6	5/6	7/8	7/8	5/6	5/6	7/8	7/8
Stage		5	6	5	6	5	6	4	5
Pressure	Mpa	4	4.8	4	4.8	4	5	3.2	4
Flow Rate	l/s	24-28-32	24-28-32	25-32-36	25-32-36	25-34-40	25-40-55	30-45-65	25-34-40
Flow Per Revolution	l/r	12	12	15	15	15	13	25.7	16.8
Bit Speed	rpm	120-140-160	120-140-160	100-128-144	100-128-144	100-136-160	115-183-250	70-105-150	90-120-144
Torque	N·m	6600	7800	7860	9500	7800	10000	11000	8500
Max.torque	N·m	10560	12480	13780	16650	14040	15000	19800	14875
Output Power	Kw	96-142	115-146	102-152	120-182	100-160	120-192	135-192	112-160
Weight on Bit	KN	100	100	100	100	170	170	170	170
Max. Weight on Bit	KN	180	180	180	180	250	250	250	250
Connection	up	4 1/2REG	4 1/2REG	4 1/2REG	4 1/2REG	6 5/8REG	6 5/8REG	6 5/8REG	6 5/8REG
	down	4 1/2REG	4 1/2REG	4 1/2REG	4 1/2REG	6 5/8REG	6 5/8REG	6 5/8REG	6 5/8REG
Length	mm	8180	8780	8160	8780	8066	8833	8433	8066
Weight	Kg	1122	1168	1138	1246	1392	1454	1483	1392



Model	Unit	5LZ203×7.0V	5LZ203×7.0VI	7LZ203×7.0IV	7LZ203×7.0V	7LZ244×7.0IV	5LZ244×7.0V	5LZ286×7.0IV	5LZ286×7.0V
Bit Size	in	9 7/8-12 1/4	9 7/8-12 1/4	9 7/8-12 1/4	9 7/8-12 1/4	12 1/4-17 1/2	12 1/4-17 1/2	14 3/4-26	14 3/4-26
OD	mm	203	203	203	203	244	244	286	286
ABH	°	0-3	0-3	0-3	0-3	0-3	0-3	0-3	0-3
Lobe		5/6	5/6	7/8	7/8	7/8	5/6	5/6	5/6
Stage		5	6	4	5	4	5	4	5
Pressure	Mpa	4	5	3.2	4	3.2	4	3.2	4
Flow Rate	l/s	25-34-40	25-40-55	30-45-65	25-34-40	40-53-65	40-50-60	55-65-80	37.5-55-70
Flow Per Revolution	l/r	15	13.1	25.7	16.8	33.3	25.4	40.2	31.5
Bit Speed	rpm	100-136-160	115-183-250	70-105-150	90-120-144	72-95-117	95-118-140	82-97-118	71-105-133
Torque	N·m	7800	10000	11000	8500	17000	14700	18800	18500
Max.torque	N·m	14040	15000	19800	14875	29750	25730	33840	33300
Output Power	Kw	100-160	120-192	135-192	112-160	128-228	134-200	176-268	110-201
Weight on Bit	KN	170	170	170	170	180	180	200	200
Max. Weight on Bit	KN	250	250	250	250	280	280	300	300
Connection	up	6 5/8REG	6 5/8REG	6 5/8REG	6 5/8REG	6 5/8REG	6 5/8REG	7 5/8REG	7 5/8REG
	down	6 5/8REG	6 5/8REG	6 5/8REG	6 5/8REG	6 5/8REG	6 5/8REG	7 5/8REG	7 5/8REG
Length	mm	8066	8833	8433	8066	9398	9188	9130	8750
Weight	Kg	1462	1585	1563	1520	2409	2289	2900	2817
