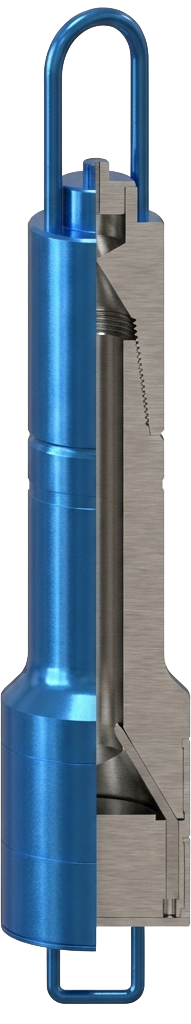

FISHING MAGNET
TECHNICAL SUMMARY
The fishing magnet is used for retrieving all types of small junk objects in the oil and geological drilling operation. It has advantages of simple structure, convenient operation, reliable property, small volume and light weight. It can be divided into A and B structures according to the different usage.
FISHING MAGNET
SPECIFICATION
|
Model |
O.D. mm(inch) |
Conn. |
Attraction (Kg/cm2) |
Hole Size (mm) |
|
CL381 |
381(15) |
7 5/8REG |
7 |
406-444.5(16-17 1/2) |
|
CL311 |
311(12 1/4) |
6 5/8REG |
7.2 |
346-381(13 5/8-15) |
|
CL254 |
254(10) |
6 5/8REG |
7.2 |
267-312(10 1/2-12 1/4) |
|
CL203 |
203(8) |
NC50 |
7.7 |
215-247(8 1/2-9 3/4) |
|
CL178 |
178(7) |
NC50 |
8.5 |
193-215(7 5/8-8 1/2) |
|
CL146 |
146(5 3/4) |
3 1/2REG |
8 |
160-185(6 5/16-7 5/16) |
|
CL102 |
102(4) |
3 1/2REG |
7.8 |
114-135(4 1/2-5 5/16) |
|
CL83 |
83(3 1/4) |
2 3/8REG |
7.7 |
95-114(3 3/4-4 1/2) |
