FLOAT VALVE SUB

TECHNICAL SUMMARY

API standard drill pipe float valve is one of necessary tool for drilling, it consists of float valve sub and float valve, the main function are to prevent drill cuttings come into mud when connecting each joint and the bit bore block caused by back flow of silt.
Engineered with precision and designed to regulate fluid flow, our high-quality float valves ensure optimal performance and dependable sealing. Crafted from durable materials, these valves offer superior resistance to corrosion, abrasion, and harsh operating conditions. With their innovative design and advanced functionality, float valves play a vital role in preventing backflow, maintaining pressure control, and enhancing safety in oilfield operations. Trust in our float valve solutions to optimize fluid control, increase efficiency, and achieve smooth-running operations in your oilfield projects.

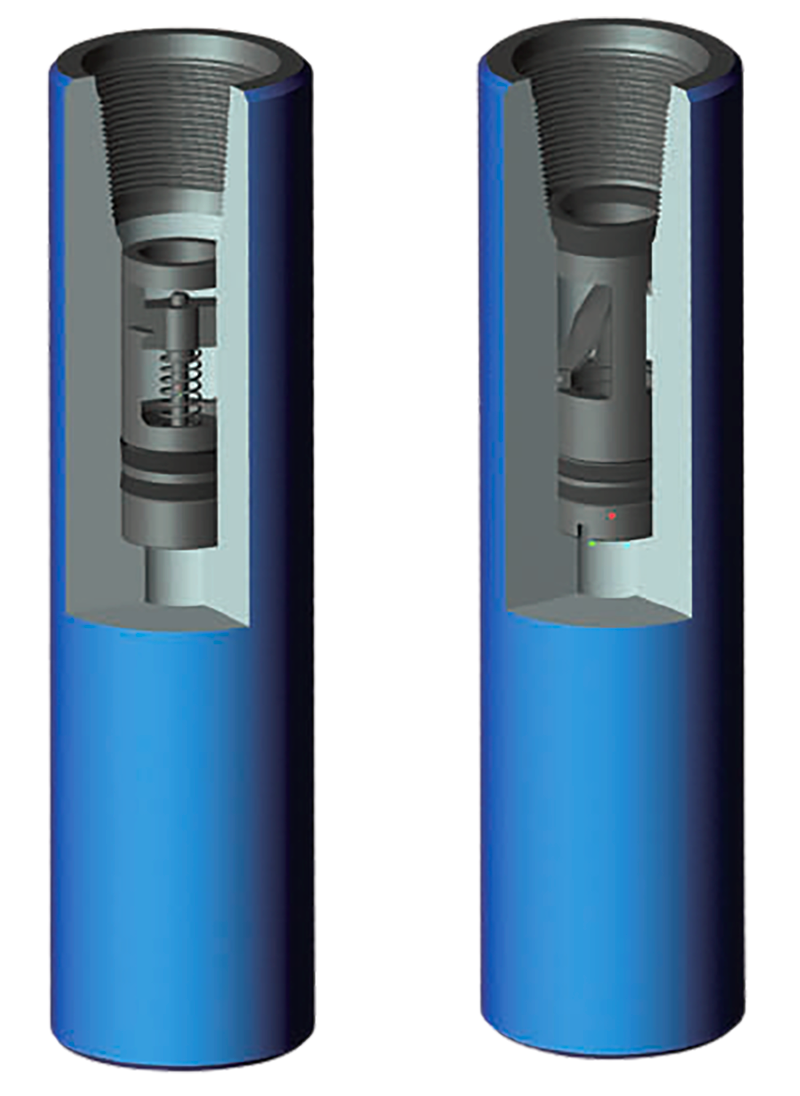

1. Plunger-type float valves:
The Model F is a plunger-type float valve that provides a positive instantaneous shut off, providing constant fluid control while drilling. The Model F is a reliable and economical selection under standard drilling operations.

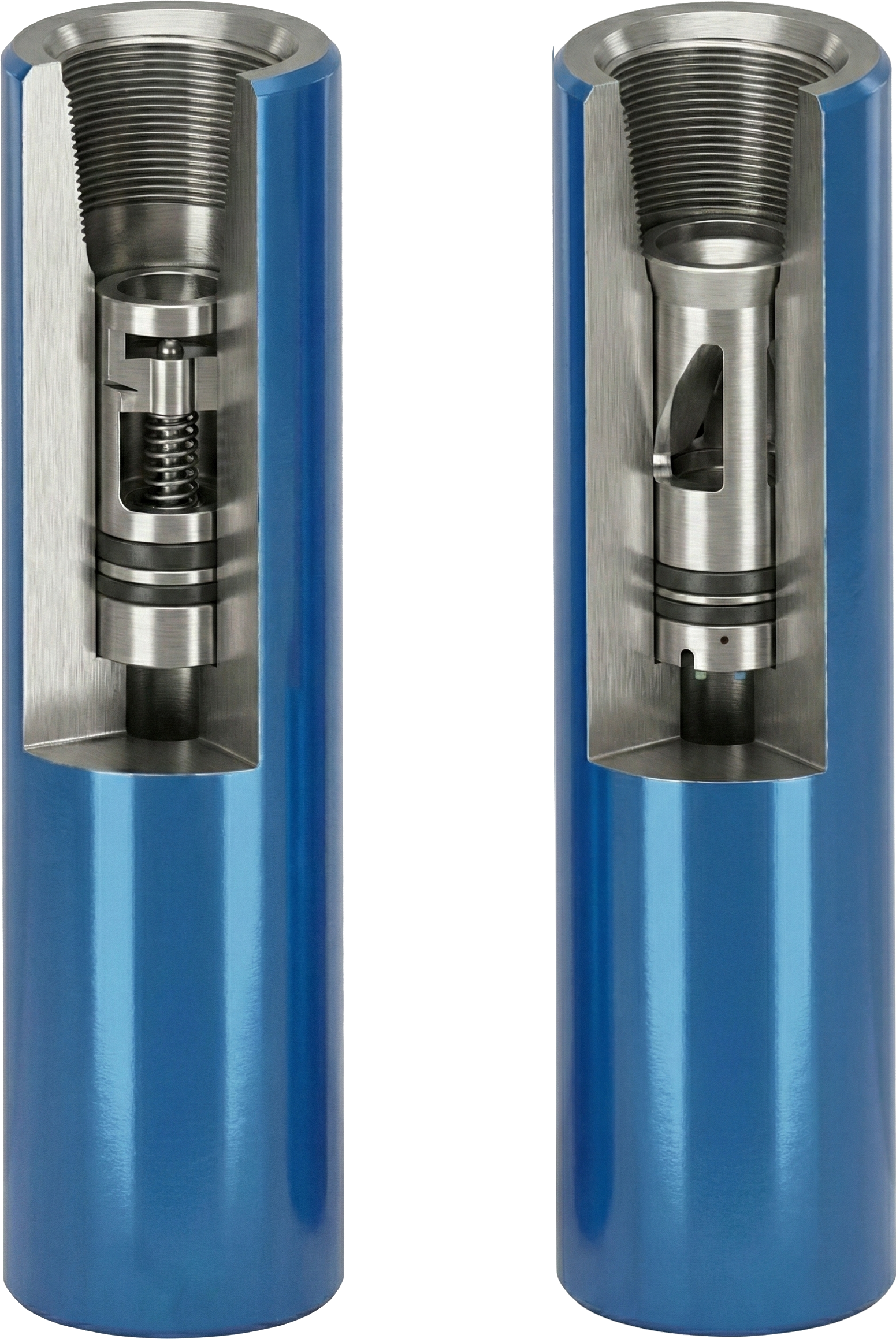

2. Flapper-type float valves:
The Model G is a flapper-type float valve that, when opened, offers an unobstructed bore through the float valve. The uniquely designed flapper closes rapidly to prevent shavings from entering the drill string when circulation stops and also assists primary BOP equipment in maintaining internal pressure control. The valve will fully open when the first joint is raised from the hole, preventing pulling wet joints.

SPECIFICATION

HOME ꅀ PRODUCTS ꅀ Float Valve Sub

Model	OD mm(inch)	OAL mm(inch)	ID mm(inch)	Box Conn.		Other Connections
Model	OD mm(inch)	OAL mm(inch)	ID mm(inch)	Conn.	Bore Depth mm(inch)	Conn.	Bore Depth mm(inch)
1R	42.1(1 21/32)	149.2(5 7/8)	42.9(1 1/16)	2 3/8REG	231.8(9 1/8)	NC23	231.8(9 1/8)
1F-2R	48.4(1 29/32)	158.8(6 1/4)	49.21(1 15/16)	2 7/8REG	254(10)	NC26	241.3(9 1/2)
2F-3R	61.1(2 13/32)	165.1(6 1/2)	61.9(2 7/16)	3 1/2REG	266.7(10 1/2)	NC31	260.35(10 1/4)
3F	71.4(2 13/16)	254(10)	72.2(2 27/32)			3 1/2FH	355.6(14)
3 1/2F	79.4(3 1/8)	254(10)	80.2(3 5/32)			NC38	362(14 1/4)
4R	88.1(3 15/32)	211.1(8 5/16)	88.9(3 1/2)	4 1/2REG	325.4(12 13/16)	NC44	331.8(13 1/16)
4F	92.8(3 21/32)	304.8(12)	93.7(3 11/16)			NC46	425.4(16 3/4)
5R	98.4(3 7/8)	247.6(9 3/4)	99.2(3 29/32)	5 1/2REG	374.6(14 3/4)	NC50	368.3(14 1/2)
5F-6R	121.4(4 25/32)	298.4(11 3/4)	122.2(4 13/16)	7 5/8REG	438.2(17 1/4)	5 1/2FH	431.8(17)

Model	O.D. mm(inch)	I.D. mm(inch)	Conn.	Float Valve Type
FZF83	82.6(3 1/4)	31.8(1 1/4)	NC23 B×2 3/8REG B	1R
FZF105	104.8(4 1/8)	31.8(1 1/4)	NC31 B×2 7/8REG B	1F-2R
FZF127	127(5)	50.8(2)	3 1/2REG B×NC38 B	2F-3R
FZF178	178(7)	71.4(2 13/16)	4 1/2REG B×NC50 B	4R
FZF165	165(6 1/2)	71.4(2 13/16)	NC50(B×P)	5R
FZF203	203(8)	71.4(2 13/16)	6 5/8REG B×6 5/8REG B	5F-6R
FZF229/FZF241	229(9)/241(9 1/2)	76.2(3)	7 5/8REG B×7 5/8REG B	5F-6R
