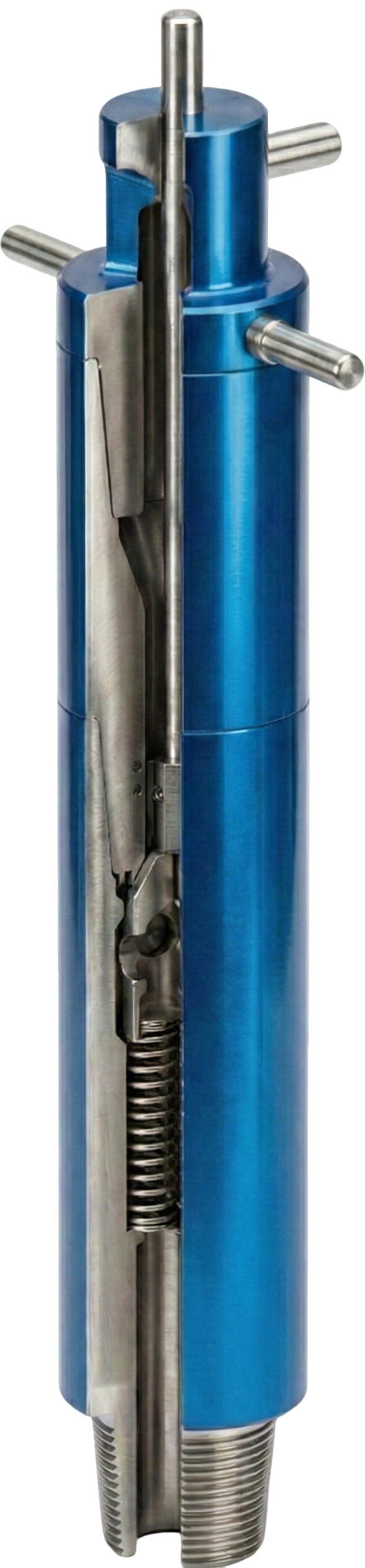

INSIDE BOP
TECHNICAL SUMMARY
The Inside BOP is a critical well control tool for kick management during drill string tripping: when a kick occurs (due to suction or unexpected fluid flow), it quickly connects to the drill pipe to contain downhole pressure. Engineered for high-pressure resistance and reliable sealing, it features intuitive operation—its open-valve design allows initial fluid venting, while a locking bolt enables rapid shutoff to stop upward fluid flow.
Compatible with standard drill pipe connections (NC26 to 7 ⅝REG), it supports reverse circulation (pumping fluid downhole) to stabilize well conditions post-kick. This compact, field-friendly tool minimizes non-productive time in onshore/offshore drilling, serving as a key backup for primary well control systems.
INSIDE BOP
|
Thread Conn. |
O.D. (in) |
I.D. (in) |
Length (in) |
Work Pressure (Mpa) |
|
NC26 |
3 1/2 |
1 1/4 |
27-28 |
70(35) |
|
NC31 |
4 1/8 |
1 5/8 |
28-30 |
70(35) |
|
NC38 |
4 3/4 |
2 |
30-31 |
70(35) |
|
NC46 |
6 1/4 |
2 7/16 |
33-34 |
70(35) |
|
NC50 |
6 5/8 |
2 13/16 |
33-34 |
70(35) |
|
5 1/2FH |
7 |
3 |
35-38 |
70(35) |
|
6 5/8REG |
8 |
3 |
38 |
70(35) |
|
7 5/8REG |
9 1/2 |
3 |
38 |
70(35) |
SPECIFICATION
