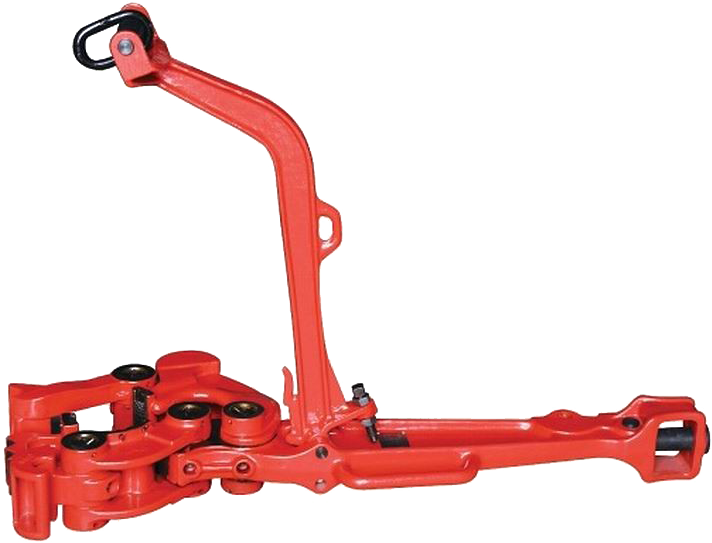

MANUAL TONGS

TECHNICAL SUMMARY

Manual Tongs are essential makeup/breakout tools for drilling, workover and well maintenance operations. Available in B/SB/Extended Casing Tong series, they cover 2 ⅜ - 36” tubulars (drill pipes, tubings, large-diameter casings) with torque ratings ranging 14 - 135kN·m. Featuring replaceable jaws, anti-slip inserts and tiered load designs, the B/SB series suits routine onshore/offshore tubular operations, the Extended Casing Tong serves super-large casing running, and workover-exclusive variants fit frequent makeup/breakout in well service sites, ensuring safe, efficient operations across diverse well scenarios.

SPECIFICATION

Type	Size range		Rated torque
Type	in	mm	KN.m
Tongs type DB	3 1/2 ~ 11 1/4	88.9 ~ 286	90
Tongs type DB	11 3/4 ~ 17	289 ~ 432	55
Tongs type B	3 3/8 ~ 11 3/8	85.7 ~ 339.7	55
Tongs type B	4 1/8 ~ 8	104.8 ~ 203.2	75
Tongs type SB	3 1/2 ~ 9	88.9 ~ 228.6	75
	9 ~ 11 3/4	228.6 ~ 298.5	55
	12 3/4 ~ 13 3/8	323.8 ~ 339.7	40
Tongs type SDD	4 ~ 15 3/4	101.6 ~ 400	135
	12 ~ 15	304.8 ~ 381	100
	16 ~ 17	406.4 ~ 431.8	80
Tongs type LF	2 3/8 ~ 7	60.3 ~ 177.8	22
Tongs type C	2 3/8 ~ 10 3/4	60.3 ~ 273	48
Workover tongs	2 3/8 ~ 10 3/4	60.3 ~ 273	35
Tongs type WWC	2 3/8 ~ 5 3/4	60.3 ~ 146.1	27
	5 3/4 ~ 8 5/8	146.1 ~ 219	20
	9 5/8 ~ 10 3/4	224.5 ~ 273	14
Tongs type WWB	2 3/8 ~ 8 5/8	60.3 ~ 219	48
Tongs type WWB	9 5/8 ~ 10 3/4	228.6 ~ 273	35
Tongs type AAX	2 3/8 ~ 8 5/8	60.3 ~ 219	75
Tongs type AAX	9 ~ 13 3/8	228.6 ~ 339.7	40
Extended casing tong	13 3/4 ~ 30	339.7 ~ 762	35
Extended casing tong	25 1/2 ~ 36	647.7 ~ 914.4	35
