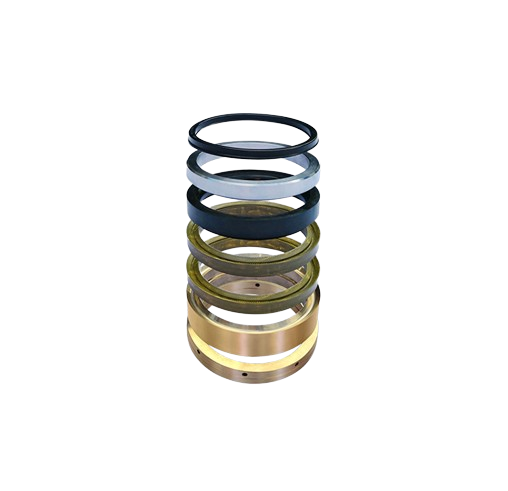

FRACTURING PUMP PLUNGER PACKING
TECHNICAL SUMMARY
Packing is designed to withstand extreme pressure, reduce friction, improve abrasion resistance and provide long life through well testing experience.
TECHNICAL PARAMETERS
1. Product Specifications: 3 in, 3.5 in, 4 in, 4.5 in, 5 in.
2. Pressure Level: 140Mpa, 210Mpa.
BENEFITS
1. Exceptional wear and temperature characteristics.
2. Constructed with proprietary material blends and compounds for superior performance.
3. Fabrics coted with high performance compound for improved abrasion resistance.
4. Delivered fast through our facility and distributors closed to the field.
PACKING TYPE
1. Ordinary packing: for unconventional oil and gas fracturing and conventional oil well fracturing; the fracturing fluid is slightly acidic (the percentage of hydrochloric acid solution is less than 10%) or neutral liquid.
2. Acid-resistant packing:for unconventional oil and gas fracturing and conventional acidizing fracturing; the fracturing fluid is a strong acid (the percentage of hydrochloric acid solution is less than 31%) or conventional oil well acidizing liquid.
FRACTURING PUMP PLUNGER PACKING
