ORCHID ENERGY-Releasing Spear

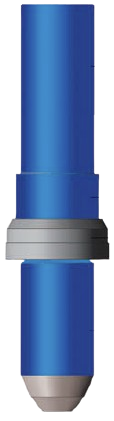

SPEAR ASSEMBLY WITH FLUSH TYPE MANDREL

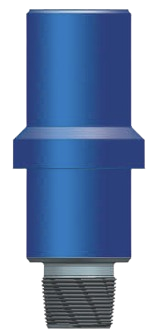

SPEAR ASSEMBLY WITH SHOULDER TYPE MANDREL

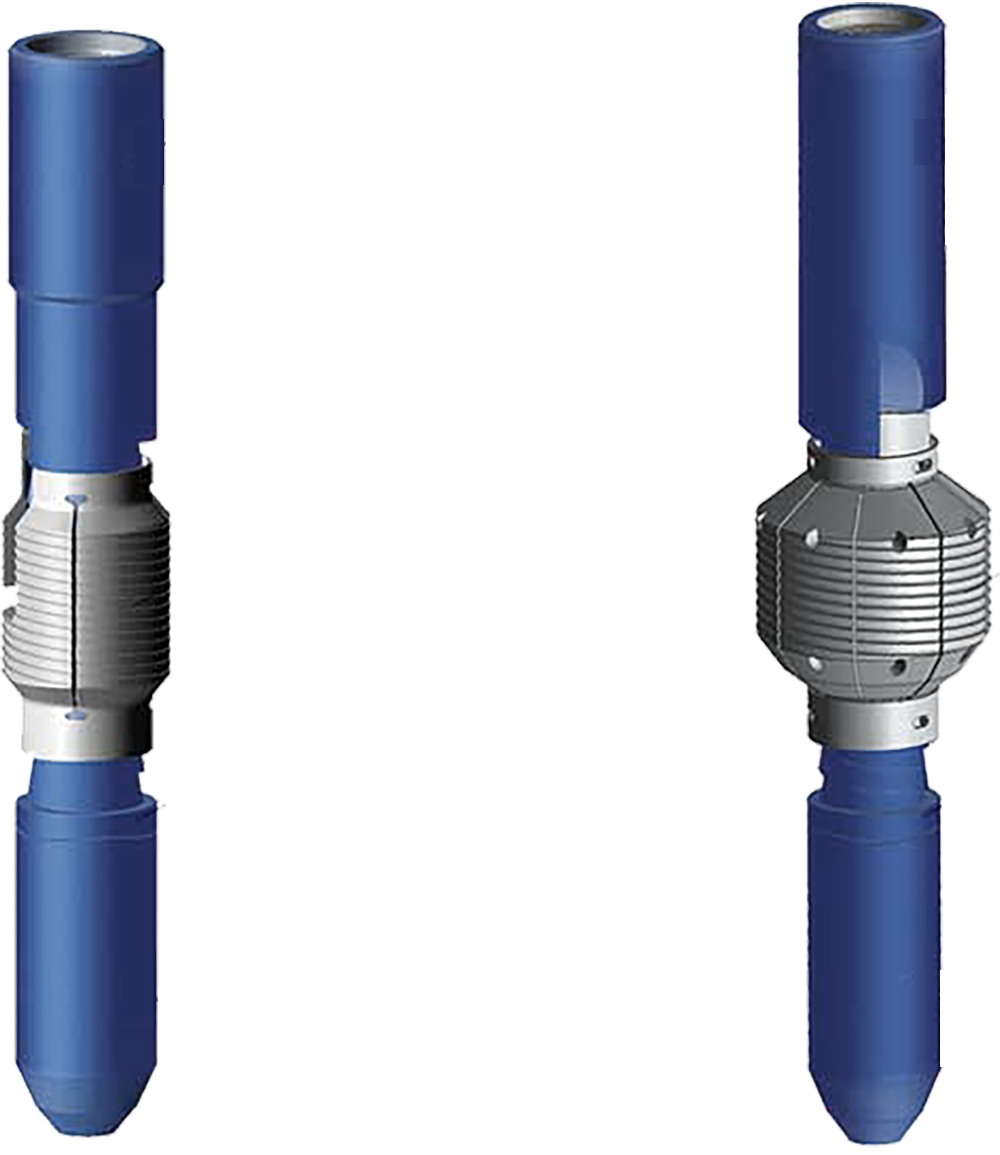

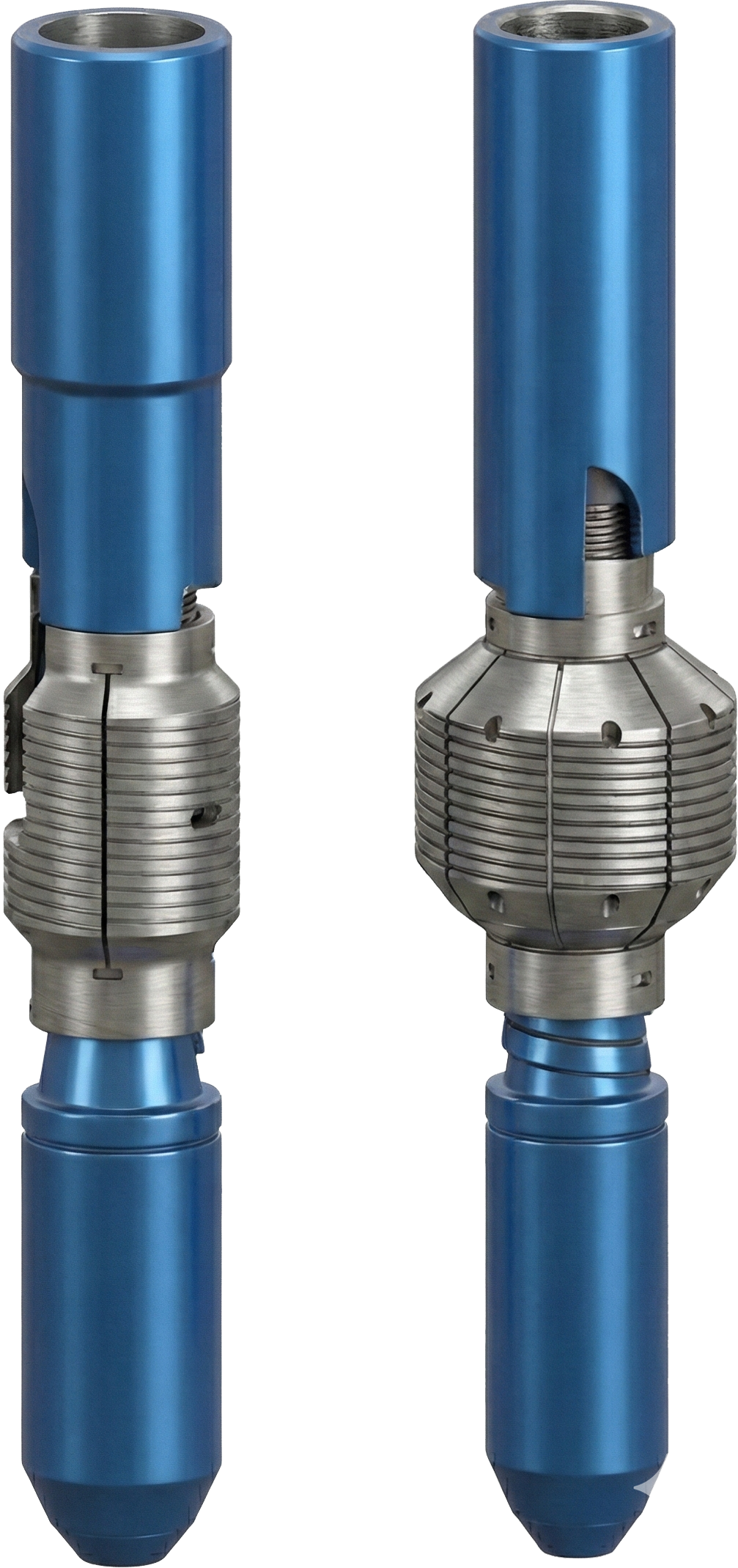

RELEASING SPEAR

TECHNICAL SUMMARY

LM-T releasing spear is one of fishing tools to fishing internally. It is mainly used to catch drill pipe, casing, tubing and other tubular junks during oil and gas well repairing. It can be used with other tools such as casing cutter, jars. If the fish is struck, releasing the spear and lifting the drilling tools.
The releasing spear consists of a mandrel, grapple, releasing ring and a bull nose nut. The mandrel could be ordered either as a flush type to enter completely into a fish or as a shoulder type to provide a positive landing position on top of the fish.

SPECIFICATION

Model	Mandrel O.D (mm)	Catch size (mm)	ThreadConn.	Allowed Load (KN)
LM-T60	89	47.4-51.8	NC26	270
LM-T73	105	57.4-62	NC31	380
LM-T89	121	70-77.8	NC38	650
LM-T102	121	82-90.1	NC38	800
LM-T114	121	92.4-103.9	NC38	1000
LM-T127	162	102-115.8	NC50	1300
LM-T140	162	118.6-127.3	NC50	1500
LM-T168	162	140-153.7	NC50	2200
LM-T178	162	150.4-166.1	NC50	2200
LM-T194	165	168.3-178.5	NC50	2300
LM-T219	203	190.8-205.7	6 5/8 REG	2300
LM-T245	203	216.8-228.7	6 5/8 REG	2500
LM-T273	203	240-258.9	6 5/8 REG	2500
LM-T340	203	313.6-323	6 5/8 REG	2500
