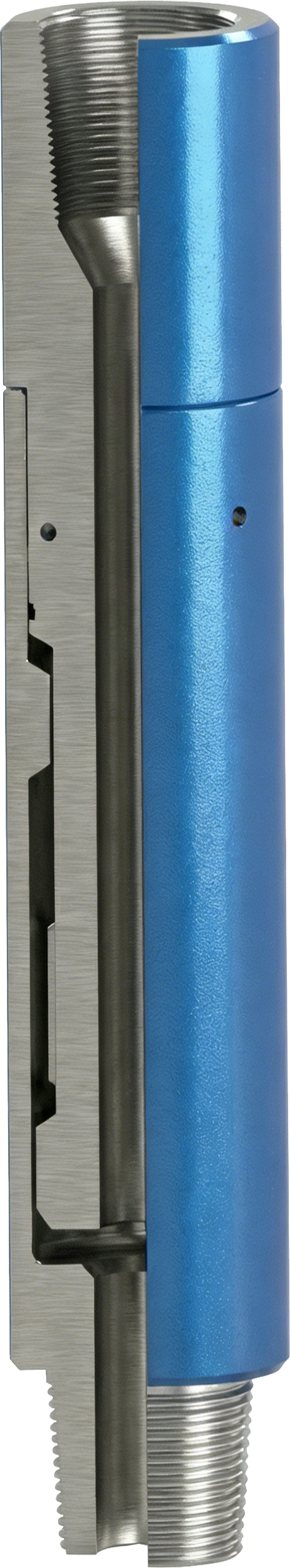

SAFETY JOINT
TECHNICAL SUMMARY
Integrated into drill strings for drilling, workover, and well testing, the AJ-C Safety Joint transmits both forward and reverse torque during routine operations—no disruption to downhole tool performance. When downhole tools become stuck, this joint disconnects intentionally as a fail-safe, allowing retrieval of the upper drill string to mitigate costly fishing or workover delays.
It fits standard API connections (ranging from NC26 to 7 ⅝ REG) across models like AJ-C86 to AJ-C228, adapting to onshore and offshore wellsite needs. This purpose-built design boosts operational safety by limiting stuck-pipe-related downtime and equipment loss in challenging downhole environments, serving as a critical protective component for well intervention workflows.
SAFETY JOINT
SPECIFICATION
|
Model |
O.D. |
I.D. |
OAL |
Connection |
|
mm (inch) |
mm (inch) |
mm (ft) |
||
|
AJ-C89 |
89(3-1/2) |
31.8 (1-1/4) |
685 (2.2) |
NC26 B X P |
|
AJ-C95 |
95(3-3/4) |
38.1 (1-1/2) |
663 (2.17) |
NC26 B X P |
|
AJ-C105 |
105(4-1/8) |
50.8 (2) |
679 (2.22) |
NC31 B X P |
|
AJ-C121 |
121(4-3/4) |
62 (2-7/16) |
712 (2.3) |
NC38 B X P |
|
AJ-C127 |
127(5) |
62 (2-7/16) |
712 (2.3) |
NC38 B X P |
|
AJ-C159 |
159(6-1/4) |
80 (3-5/32) |
781 (2.56) |
NC50 B X P |
|
AJ-C165 |
165(6-1/2) |
82 (3-15/64) |
751 (2.5) |
NC50 B X P |
|
AJ-C178 |
178(7) |
82 (3-15/64) |
791 (2.59) |
NC50 B X P |
|
AJ-C203 |
203(8) |
82 (3-15/64) |
841 (2.8) |
6-5/8REG B X P |
|
AJ-C229 |
229(9) |
88.9 (3-1/2) |
910 (3) |
7-5/8REG B X P |
