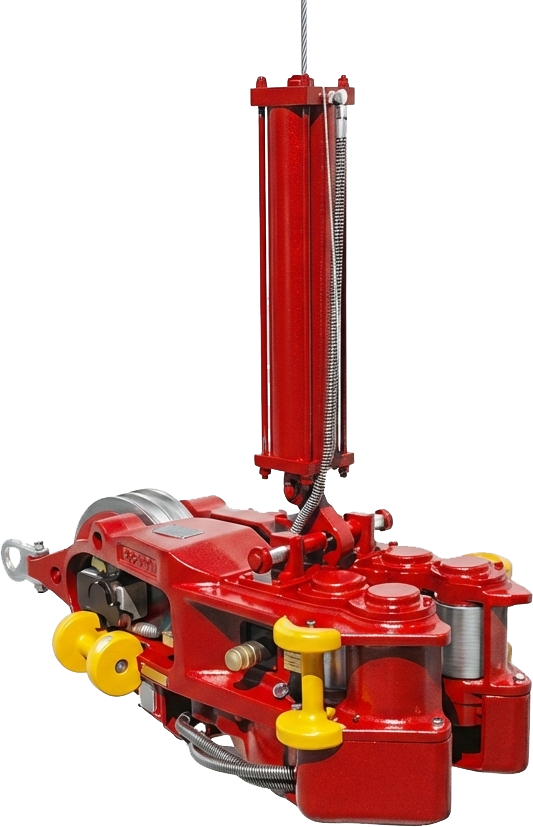

SPINNING WRENCH
TECHNICAL SUMMARY
Spinning wrenches facilitate drill pipe/casing make-up/break-out during tripping operations. They enable rapid thread spinning, cut manual labor, and pair with power tongs for precise torque control. Fitting 2⅜–5½” pipes, they reduce non-productive time in onshore/offshore drilling.
SPINNING WRENCH
SERIES Q
|
Model |
Q140-200 |
Q254-250 |
Q254-300Y |
|
|
Drive mode |
Pneumatic |
Hydraulic |
||
|
Size range |
mm |
88.9~139.7 |
88.9~254 |
88.9~254 |
|
in |
3 1/2~5 1/2 |
3 1/2~10 |
3 1/2~10 |
|
|
Air pressure |
MPa |
0.5~0.9 |
0.5~0.9 |
/ |
|
psi |
72~130 |
72~130 |
/ |
|
|
Pressure rating |
Mpa |
/ |
/ |
14 |
|
psi |
/ |
/ |
2000 |
|
|
Max. brake torque |
Nm |
2000 |
2500 |
3000 |
|
Ft.lbf |
1475 |
1840 |
2210 |
|
|
Speed |
RPM |
0~90 |
0~120 |
0~95 |
|
Air consumption |
m3/min |
10.3 |
15 |
/ |
|
ft3/min |
360 |
529 |
/ |
|
|
flow |
LPM |
/ |
/ |
120~140 |
|
GPM |
/ |
/ |
32~37 |
|
|
Size |
mm |
1400×530×835 |
1250×570×465 |
1100×560×700 |
|
in |
55×21×33 |
49×23×18 |
44×23×28 |
|
|
Weight |
Kg |
378 |
440 |
400 |
|
lb |
833 |
971 |
880 |
|
SPECIFICATION
