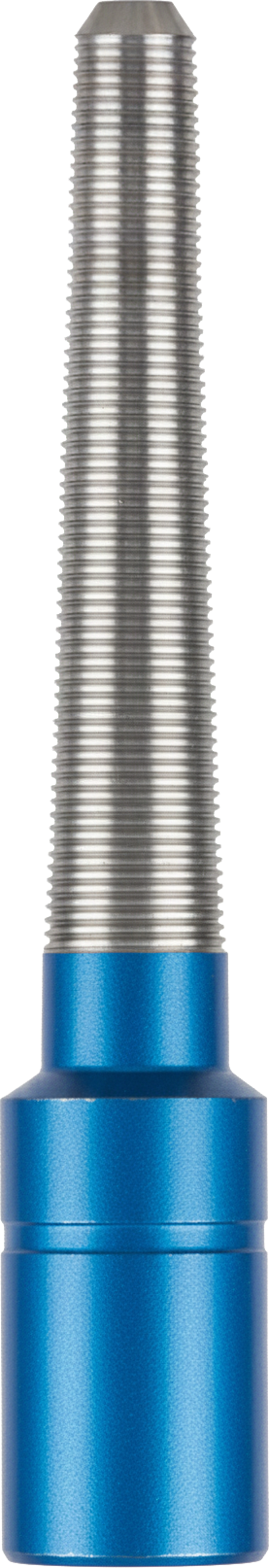

TAPER TAP
TAPER TAP
TECHNICAL SUMMARY
The taper tap is a special fishing tool which making thread at the inner bore of dropped objects such as drill pipe and tubing etc. It has high success rate for catching tubular fish with coupling. It can work with right- or left-hand drill pipe and other tools, for all kinds of fishing job.
SPECIFICATION
|
Model |
Sub OD mm(inch) |
Conn. |
Wicker Range mm(inch) |
|
GZ-NC26 |
89(3 1/2) |
NC26 |
33.3～55(1 5/16 ～ 2 3/16) |
|
GZ-NC31 |
105(4 1/8) |
NC31 |
79～105(3 1/8 ～ 4 1/8) |
|
GZ-NC38 |
121(4 3/4) |
NC38 |
82～121(3 1/4 ～ 4 3/4) |
|
GZ-NC50 |
165(6 1/2) |
NC50 |
127～165(5 ～ 6 1/2) |
|
GZ-6-5/8REG |
203(8) |
6 5/8REG |
165～203(6 1/2 ～ 8) |
