TOP DRIVE IBOP
TECHNICAL SUMMARY

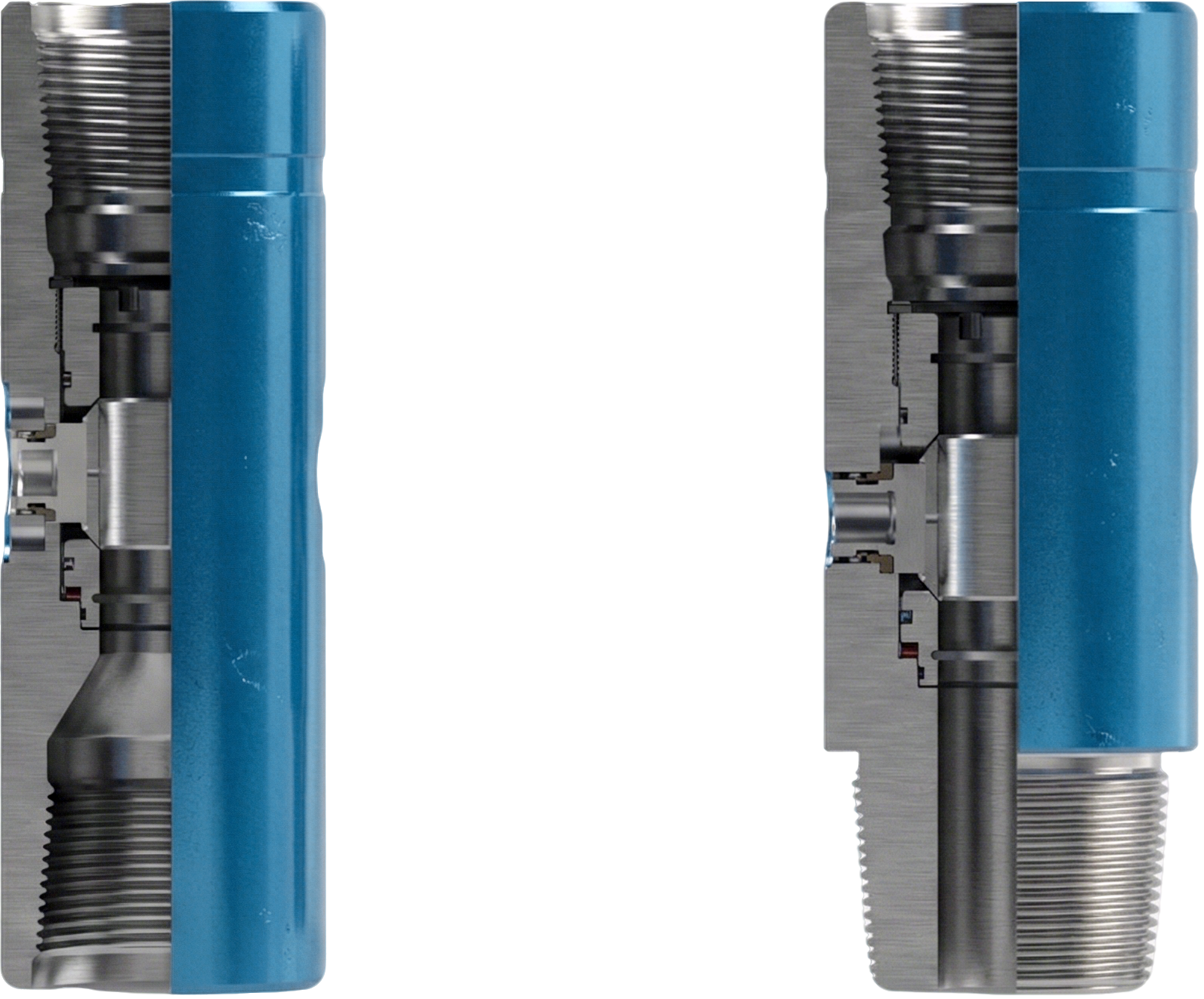

IBOP for top drive can be divided into Upper IBOP and Lower IBOP, they are control valves which are used with the top drive system. Usually the two valves connected to the top drive drilling device. The IBOP adopts high reliable metal seal. Soit can bear high pressure upward and downward. The working pressure can be achieved 10000 psi or 15000 psi.
|
Model |
O.D. |
I.D. |
OAL |
Connection |
|
mm (inch) |
mm (inch) |
mm (inch) |
||
|
J03M |
187 (7 23/64) |
78 (3 5/64) |
572 (22 33/64) |
6 5/8 REG |
|
J03J |
187 (7 23/64) |
78 (3 5/64) |
523 (20 19/32) |
6 5/8 REG |
|
SNXS187-3C |
187 (7 23/64) |
76.2 (3) |
572 (22 33/64) |
6 5/8 REG |
|
SNXS187-4 |
187 (7 23/64) |
76.2 (3) |
523 (20 19/32) |
6 5/8 REG |
|
SNXS187-9 |
187 (7 23/64) |
78 (3 5/64) |
523 (20 19/32) |
6 5/8 REG |
|
SNXS187-10 |
187 (7 23/64) |
78 (3 5/64) |
572 (22 33/64) |
6 5/8 REG |
|
SNXS190-1 |
190 (7 31/64) |
76.2 (3) |
547 (21 17/32) |
6 5/8 REG |
|
SNXS197-5C |
197 (7 3/4) |
76.2 (3) |
572 (22 33/64) |
6 5/8 REG |
|
SNXS197-6B |
197 (7 3/4) |
76.2 (3) |
536 (21 7/64) |
6 5/8 REG |
|
SNXS197-3 |
197 (7 3/4) |
78 (3 5/64) |
584 (23) |
6 5/8 REG |
|
SNXS197-4 |
197 (7 3/4) |
78 (3 5/64) |
512 (20 5/32) |
6 5/8 REG |
|
SNXS200-2 |
200 (7 7/8) |
76.2 (3) |
547 (21 17/32) |
6 5/8 REG |
|
SNXS216-1 |
216 (8 1/2) |
78 (3 5/64) |
600 (23 5/8) |
7 5/8 REG |
|
SNXS216-2 |
216 (8 1/2) |
78 (3 5/64) |
533 (20 63/64) |
7 5/8 REG |
|
SNXS216-4 |
216 (8 1/2) |
76.2 (3) |
603 (23 47/64) |
7 5/8 REG |
|
DX254-3 |
254 (10) |
105 (4 1/8) |
596 (23 15/32) |
8 5/8 REG |
SPECIFICATION
TOP DRIVE IBOP
