VALVE SEAT AND BODY

TECHNICAL SUMMARY

The valve and seats undergo process control and production processing in accordance with API specifications and ISO9001 quality system.
The material is made of high-quality 40CrNiMo and 20CrMnTi low-carbon alloy steel, processed through advanced processes such as overall forging, carburizing, and quenching, with a working surface hardness of HRC ≥ 60. Through precise calculation and CNC lathe processing, the size between the valve body and valve seat is perfectly matched. Through the use of multiple frequencies and blocks on land drilling and offshore platforms.
The service life of its valve body is 4-5 times that of ordinary products, greatly improving drilling production efficiency and operating costs, and reducing the labor intensity of the drilling crew.

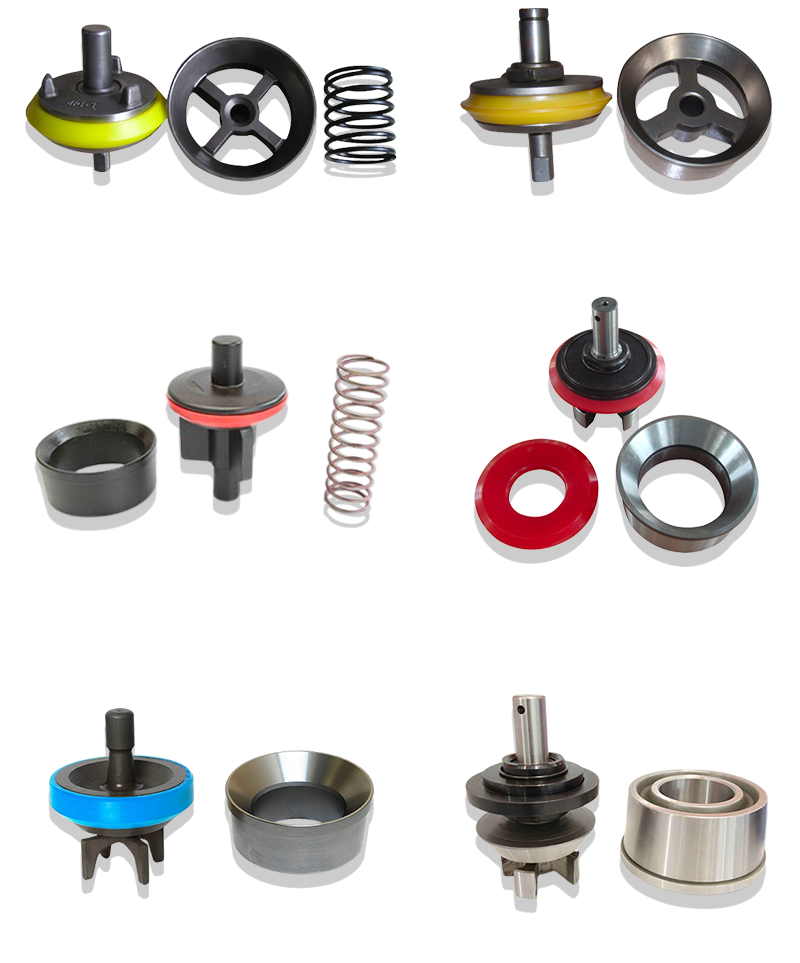

GENERAL TYPES OF MUD PUMP VALVE

1. Stem guided valve and seat - 3 web.

2. Stem guided valve and seat - 4 web.

3. Wing guided valve and seat - full open.

4. High-pressure valve and seat.

VALVE SEAT AND BODY OF MUD PUMP

SPECIFICATION

Valve Assembly	Specification	API4#, 5# 6#, 7#, 8#
	Types	three web, four web and full open valve & Seat
	The valve assembly produced by Orchid Energy can be interchanged and used with the pump types listed on the right side	Emsco: F-350 / F-500 / F-650/ F-800 / F-1000/ F-1300 / F-1600
		Gardner Denver: TEE / PAH / PZ-7/ PZ-8 / PZ-9 / PZ-10 / PZ-11
		Ideco: T-500 / T-800 / T-1000 / T-1300 / T-1600
		NOV: 7-P-50 / 8-P-80 / 9-P-100/ 10-P-130 / 12-P-160 / 14-P-220
		Oilwell: A-850-PT / A-1100-PT / A-1400-PT / A-1700-PT
		Bomco: F-500 / F-800 / F-1000/ F-1300 / F-1600/ F-2200HL
		Wirth: TPK 1000 / TPK 1300 / TPK 1600/ TPK 2000 / TPK 2200
		Aplex: SC -170L / SC-230 / SC-300
