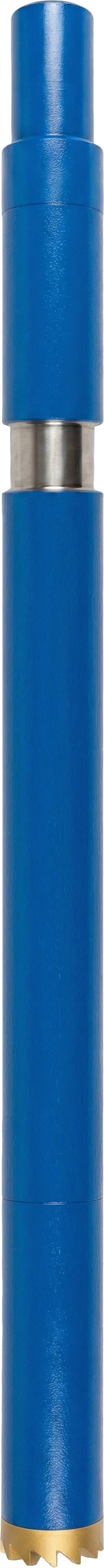

WASHOVER PIPE
TECHNICAL SUMMARY
Washover pipes are specialized tools for downhole fishing and stuck pipe remediation in well workover operations, designed to mill around and free stuck downhole tools. Constructed from high-impact-toughness materials, they use double-stage short trapezoidal thread connections—balancing high strength with easy makeup, while metal shoulder seals ensure reliable pressure containment.
Compatible with a range of wellbore sizes (across models like TXG95.3 to TXG406.4), they pair with detachable components (washover shoes, adapter subs) for tailored setups. Custom specifications (OD, wall thickness, joints) are available to meet unique well needs, supporting both standard and client-specific intervention workflows. This design boosts efficiency in stuck pipe scenarios, cutting non-productive time for onshore/offshore operations.
WASHOVER PIPE
SPECIFICATION
|
Model |
O.D. (mm) |
I.D. (mm) |
Wall Thickness (mm) |
Min. Hole Size (mm) |
Max. Mill Size (mm) |
Max. Tensile Load (KN) |
Conn. Field Torque (N·M) |
Seal Pressure (Mpa.) |
|
TXG114.30-8.56 |
114.30 |
97.18 |
8.56 |
8.56 |
80.90 |
390 |
9490 |
20 |
|
TXG127-9.19 |
127.00 |
108.62 |
9.19 |
9.19 |
101.60 |
440 |
12202 |
20 |
|
TXG139.70-9.17 |
139.70 |
121.36 |
9.17 |
9.17 |
117.48 |
500 |
14914 |
20 |
|
TXG146.05-7.92 |
146.05 |
13.02 |
7.92 |
7.92 |
127.00 |
500 |
14914 |
20 |
|
TXG146.05-9.00 |
146.05 |
128.05 |
9.00 |
9.00 |
120.65 |
560 |
16269 |
20 |
|
TXG168.28 8.94 |
168.28 |
150.39 |
8.94 |
8.94 |
142.88 |
600 |
21693 |
15 |
|
TXG177.80-9.19 |
177.80 |
159.42 |
9.19 |
9.19 |
152.40 |
640 |
24404 |
15 |
|
TXG193.68 9.53 |
193.68 |
174.63 |
9.53 |
9.53 |
168.28 |
700 |
31183 |
15 |
|
TXG193.68-10.92 |
193.68 |
171.83 |
10.92 |
10.92 |
165.10 |
810 |
36607 |
15 |
|
TXG193.68-12.70 |
193.68 |
168.28 |
12.70 |
12.70 |
161.93 |
1060 |
13386 |
15 |
|
TXG203.20 9.53 |
203.20 |
184.15 |
9.53 |
9.53 |
177.00 |
820 |
32539 |
15 |
|
TXG206.38 9.40 |
206.38 |
187.58 |
9.40 |
9.40 |
177.80 |
830 |
32539 |
15 |
|
TXG219.07-11.43 |
219.07 |
196.21 |
11.43 |
11.43 |
187.33 |
1100 |
47453 |
15 |
|
TXG219.07-12.70 |
219.08 |
193.67 |
12.40 |
12.40 |
184.15 |
1220 |
54232 |
15 |
|
TXG228.60-10.80 |
228.60 |
207.01 |
10.80 |
10.80 |
200.03 |
1260 |
47453 |
15 |
|
TXG244.48-11.99 |
244.48 |
220.50 |
11.99 |
11.99 |
212.73 |
1460 |
67791 |
15 |
|
TXG244.48-13.84 |
244.48 |
216.80 |
13.84 |
13.84 |
206.37 |
1560 |
81349 |
15 |
|
TXG273.05-11.43 |
273.05 |
250.19 |
11.43 |
11.43 |
238.13 |
1620 |
81349 |
15 |
|
TXG273.05-12.57 |
273.05 |
247.91 |
12.57 |
12.57 |
234.95 |
1640 |
88128 |
15 |
|
TXG298.44-12.42 |
298.44 |
273.60 |
12.42 |
12.42 |
263.53 |
1800 |
108465 |
10 |
|
TXG339.72-13.06 |
339.72 |
313.60 |
13.06 |
13.06 |
301.62 |
2020 |
149140 |
10 |
|
TXG406.40-16.66 |
406.40 |
373.08 |
16.66 |
16.66 |
355.60 |
2500 |
254894 |
7.0 |
