WEARING SUB
|
Model （F=Non-metallic, J=Metallic） |
Working O.D. (mm) |
Applicable Casing O.D. (mm) |
Length (mm) |
Conn. |
|
TFF(J)K146 |
142-146 |
177.8 |
770-790 |
NC38 |
|
TFF(J)K150 |
155-156 |
193.7 |
770-790 |
NC46 |
|
TFF(J)K206 |
175-210 |
244.5 |
940-960 |
NC50 |
|
TFF(J)K260 |
260-300 |
339.7 |
1040-1060 |
5 1/2FH |
SPECIFICATION

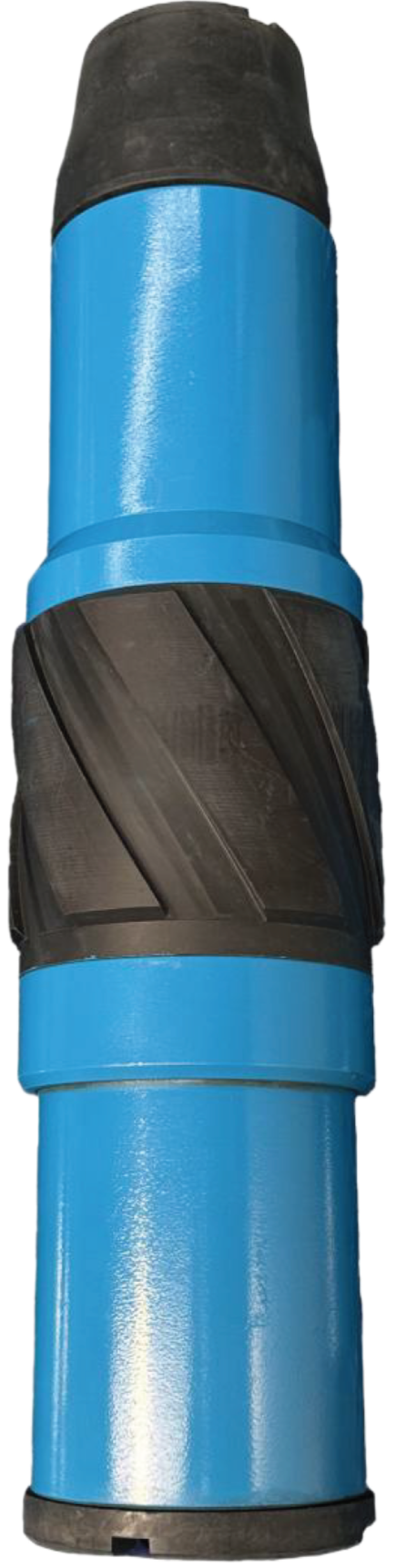

WEAR SUB
TECHNICAL SUMMARY
Designed for directional/horizontal wells (high casing-drill pipe contact scenarios), the non-rotary casing wear sub addresses severe wear in extended sliding operations. Its one-piece sintered reinforced PTFE wear sleeve avoids shedding, using self-lubrication to cut friction by 20% and rotary torque by 30%. Rated for >200℃ and acid/alkali resistance, it preserves casing integrity in harsh downhole environments. Compatible with API connections (NC38/NC50) in metallic/non-metallic variants, it enables tool-free field installation. This sub reduces casing damage-related workover costs while boosting efficiency across onshore/offshore drilling.
