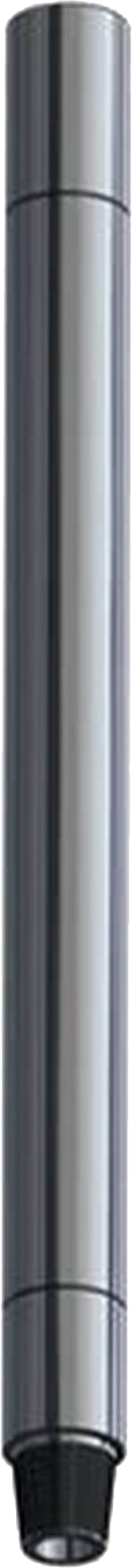

FISHING BUMPER SUB
TECHNICAL SUMMARY
The KXZ Fishing Bumper Sub is a mechanical jarring tool for stuck drill string remediation. It delivers repeated jarring to free stuck points; if jarring/lifting fails, it rotates to assist releasing fishing tools. Paired with internal cutters, it provides constant feed force for stable cuts; with back-off tools, it compensates for post-backoff thread stroke. It fits API connections (NC38/NC50) for onshore/offshore fishing operations.
FISHING BUMPER SUB
SPECIFICATION
|
Model |
OD mm(inch) |
ID mm(inch) |
Conn. |
Tensile Load KN |
Stroke mm(inch) |
Max. Working Torque KN·m |
OAL mm(inch) |
|
KXZ121 |
121(4 3/4) |
38(1 1/2) |
NC38 |
1220 |
1000(37 3/8) |
8 |
2102(82 3/4) |
|
KXZ159 |
159(6 1/4) |
50.8(2) |
NC50 |
1330 |
1400(55) |
13 |
2606(102 1/2) |
|
KXZ165 |
165(6 1/4) |
50.8(2) |
NC50 |
1430 |
1400(55) |
13 |
2606(102 1/2) |
|
KXZ171 |
171(6 3/4) |
50.8(2) |
NC50 |
1530 |
1400(55) |
13 |
2606(102 1/2) |
|
KXZ178 |
178(7) |
50.8(2) |
NC50 |
1530 |
1400(55) |
15 |
2606(102 1/2) |
|
KXZ203 |
203(8) |
70(2 3/4) |
6 5/8REG |
1800 |
1500(99) |
20 |
2729(107 1/2) |
