ORCHID ENERGY-HDD Pipe

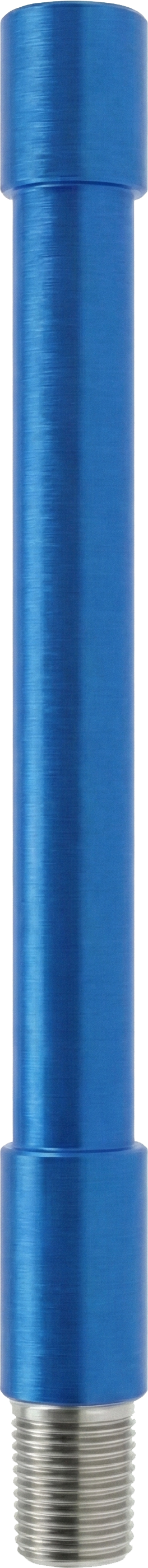

HORIZONTAL DIRECTIONAL DRILL PIPE

TECHNICAL SUMMARY

Orchid Energy could provide HDD pipe and related non-excavation drilling tools. Engineered for precision and efficiency, our HDD pipe delivers unparalleled performance in challenging terrains. We have developed all kinds of hammer drill pipe, hot water well drill pipe, core sampling drill pipe.
With optimized strength, durability, and flexibility, our HDD pipe enables precise navigation, reduced borehole deviations, and enhanced drilling progress. Seamlessly integrating with HDD equipment, our drill pipe ensures reliable fluid flow, increased productivity, and reduced project timelines. Experience the future of underground installations with our cutting-edge horizontal directional drill pipe solutions, paving the way for success in pipeline construction projects.

SPECIFICATION1: HORIZONTAL DIRECTIONAL DRILL PIPE

Product code	Pipe body OD (inch)	Wall Thickness	Work length (ft)	Thread type	Tool joint OD (inch)	Tool joint ID of pin end (inch)	Pin connection length (inch)	Grade	Drill pipe torsion strength (ft-lb)	Drill pipe tensile strength (lb)	Tool Joint &body torsion strength ratio	Min. bend radius (ft)	Angle	Bend slope ratio (%)	Part Number
D6x6 (One piece upsetted )	1.49	0.216	6	FS1 #200	1.890	0.748	1.990	Z140	900	3100	0.5	114	5.7	9.9	1019001
D7X11- D10X15 S3 (One piece upsetted )	1.66	0.256	6	FS1 #200	1.890	0.748	1.996	Z140	2342	3257	0.5	102	6.7	11.8	1001002
D10x14,D10x15 (One piece upsetted )	1.66	0.217	10	FS1 #200	1.890	0.748	1.996	Z140	2342	2830	0.55	102	11.2	19.8	1001005
D16X20A,D16X22 SERIES II,D20X22 S3 (One piece upsetted )	1.9	0.236	10	FS1 #250	2.126	0.748	2.500	Z140	3404	3556	0.55	117	9.8	17.3	1017002
D20x22,D20X22 SERIES II,D20X22 S3,D23X30 S3 (One piece upsetted )	2.06	0.256	10	FS1 #400	2.252	0.874	2.500	Z140	4016	4187	0.51	127	9	15.9	1016001
D23X30 S3,D24X40,D24X40A,D24X40 SERIES II,D24X40 S3 (One piece upsetted )	2.375	0.280	10	FS1 #600	2.638	0.875	2.500	Z140	7298	5298	0.63	146	7.9	13.8	1004023
D33x44,D36x50,D36x50 Series II(One piece upsetted )	2.375	0.295	10	FS2 #602	2.756	1.181	2.874	Z140	6859	5557	0.57	146	7.9	13.8	1004015
D33x44,D36x50,D36x50 Series II(One piece upsetted )	2.375	0.295	15	FS2 # 602	2.756	1.181	2.874	Z140	6859	5557	0.57	146	11.8	20.8	1004011
D33X44,D36X50,D36X50 SERIES II,D40X50 S3 (One piece upsetted )	2.375	0.315	10	FS1 #650	2.764	1.000	2.500	Z140	8427	5869	0.67	146	7.9	13.8	1004024
D33x44,D36x50,D36x50 Series II(One piece upsetted )	2.375	0.315	15	FS1 #650	2.764	0.874	2.500	Z140	8847	5869	0.71	146	11.8	20.9	1004027
D36X50,D36X50 SERIES II,D40X55 S3 (One piece upsetted )	2.625	0.415	15	FS1 #700	3.110	1.102	3.000	Z140	11738	8496	0.6	165	10.4	18.4	1005006
D36X50,D36X50 SERIES II,D40X55 S3 (One piece upsetted )	2.625	0.415	10	FS1 #700	3.110	1.102	3.000	Z140	11738	8496	0.6	165	7	12.2	1005005
D50x100/Uni60x70 (One piece upsetted )	2.875	0.374	10	FS1 #900	3.250	1.181	3.500	Z140	12428	8464	0.57	177	6.5	11.4	1006006
D50X100,D50X100a,D60x90 (One piece upsetted )	2.875	0.386	15	FS1 #900	3.250	1.181	3.500	Z140	12428	8686	0.56	177	9.7	17.1	1005007
D50X100,D80x100 Series II, D60x90(One piece upsetted )	3.5	0.374	15	FS1 #800	3.622	1.417	3.500	Z140	17362	10578	0.5	215	8	14	1009003
D100x120(One piece upsetted )	3.5	0.394	20	FS2 #802	4.134	2.244	3.602	Z140	19590	11068	0.54	215	10.7	18.8	1009001
D100x120 Series II,D130X150,D60x90,D60x90 S3, D100x140,D100x140 s3 (One piece upsetted )	3.5	0.472	20	FS1 #1000	4.331	2.244	3.500	Z140	26076	12946	0.64	215	10.6	18.8	1009017

SPECIFICATION2: DITCH WITCH DRILL ROD

Product code	Pipe body OD (inch)	wall thickness (inch)	work length (ft)	Thread type	Tool joint OD (inch)	Tool joint ID of pin end (inch)	Pin connection length (inch)	Grade	Drill pipe torsional strength (ft-lb)	Drill pipe tensile strength (lb)	Tool Joint and body torsional strength ratio	Minimum bend radius (ft)	Angle	Bend slope ratio (%)	Part Number
JT920/JT921(One piece upsetted)	1.661	0.236	6.6	DW1.41	1.744	0.354	2.240	Z140	2242	3048	0.5	102	7.4	12.9	1001003
JT1720(One piece upsetted)	2.126	0.256	9.8	DW1.69	2.362	0.650	2.913	Z140	5178	4332	0.61	131	8.6	15.2	1003001
JT2020/JT20(One piece upsetted)	2.126	0.295	10.0	DW1.94	2.638	0.748	2.953	Z140	6148	4894	0.67	131	8.6	15.2	1003003
JT25,JT30(One piece upsetted)	2.374	0.295	9.8	DW2.11	2.750	0.827	3.335	Z140	8062	5557	0.67	146	7.7	13.6	1004017
JT2720(One piece upsetted)	2.374	0.295	9.8	DW1.94	2.598	0.669	2.953	Z140	6299	5557	0.52	146	7.7	13.6	1004034
JT25/JT2720M1/3020M1(One piece upsetted)	2.374	0.335	9.8	DW2.11	2.811	0.748	3.335	Z140	10241	6178	0.67	146	7.7	13.6	1004021
JT4020(One piece upsetted)	2.874	0.394	14.8	DW2.4	3.126	0.984	3.917	Z140	10495	8841	0.47	177	9.6	16.9	1006003
JT4020M1(One piece upsetted)	2.874	0.413	14.8	DW2.59	3.346	1.181	3.598	Z140	13980	9203	0.6	177	9.6	16.9	1006019
JT7020/8020(Rotary friction welding)	3.5	0.368	14.8	DW3.27	4.000	1.378	5.217	S135	20003	10061	0.6	215	7.9	13.8	1009010
