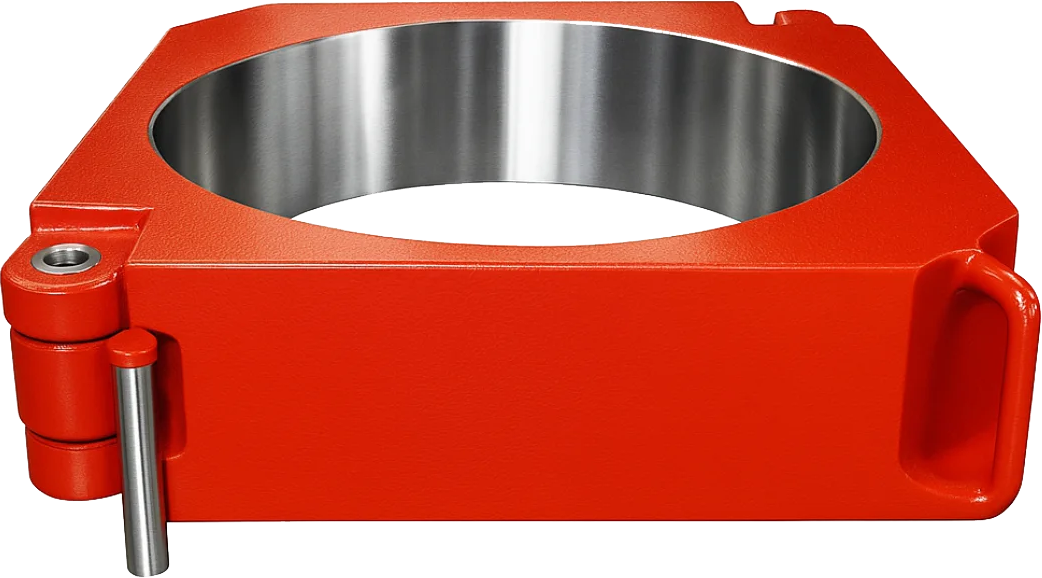

MANUAL SPIDER
TECHNICAL SUMMARY
Designed for light-duty workover and small-rig drilling, our API 7K-certified Manual Spiders use intuitive lever actuation for quick pipe string securing. Interchangeable slips fit 1.315–3.1/2” diameters, delivering consistent wellhead stability at rated loads up to 80 short tons. Their robust, low-maintenance frame suits remote locations prioritizing simplicity and reliability.
MANUAL SPIDER
SERIES TS
MANUAL SPIDER
SERIES JOY
-
Model
Applicable Pipe Size (in)
Rated Load
(short tons)
Model
Applicable Pipe Size (in)
Rated Load
(short tons)
TS3 1/2-100
1.05
100
TS5 1/2-100
3
100
1.315
3 1/8
1.68
3 1/4
1.9
3 1/2
2
3 3/4
2 1/16
4 1/8
2 3/8
4 1/4
2 7/8
4 3/8
3 1/8
4 1/2
3 3/8
4 3/4
3 1/2
5
TS5 1/2-100
2 3/8
100
5 1/2
2 7/8
5 3/4
-
Specification
Configure
Size Range (in)
Taper
Rated Load
(short tons)
JOY13 3/8-200
Spider+Insert BowlⅡ
7-8 5/8
1:3
200
Spider+Insert BowlⅠ
9-10 3/4
1:3
Spider+Insert BowlⅠ
9-10 3/4
1:4
Spider
11 3/4-13 3/8
1:4
SPECIFICATION
MANUAL SPIDER
