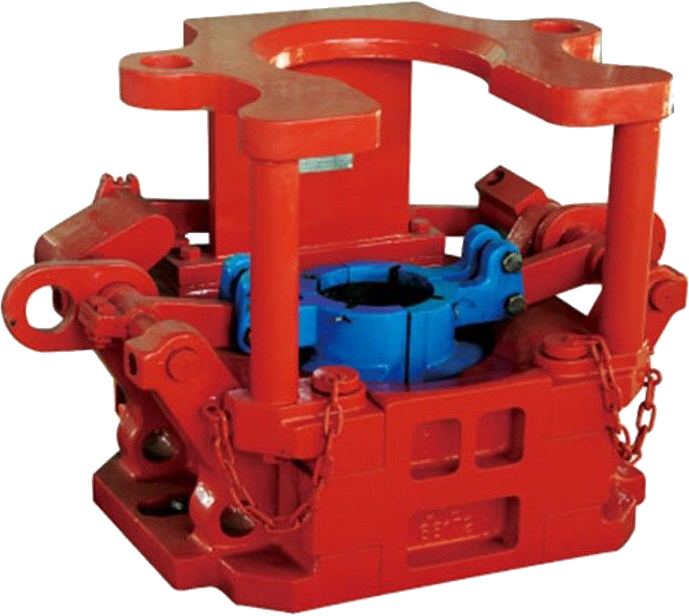

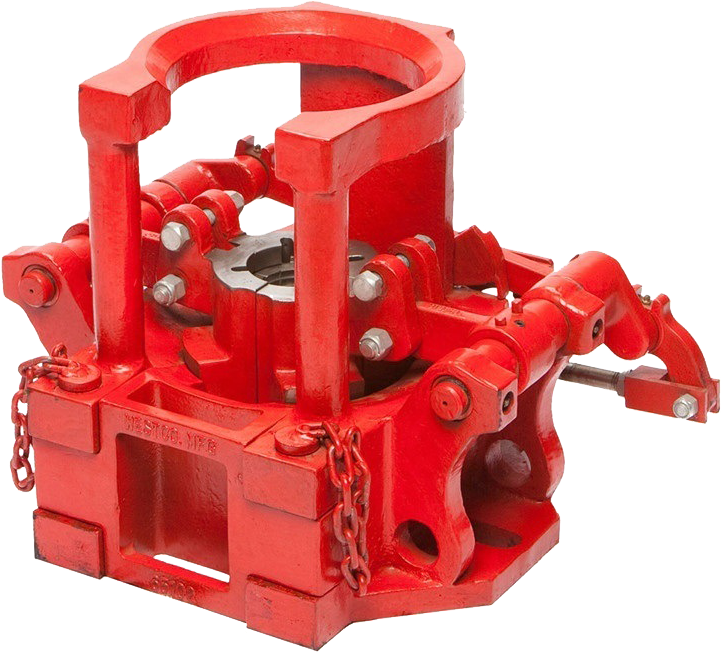

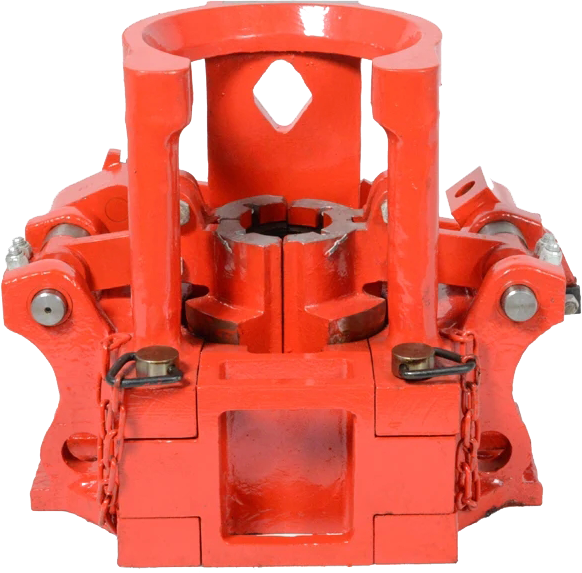

PNEUMATIC SPIDER
PNEUMATIC SPIDER SERIES C
PNEUMATIC SPIDER SERIES E
PNEUMATIC SPIDER SERIES CHD
PNEUMATIC SPIDER SERIES QQP
PNEUMATIC SPIDER
TECHNICAL SUMMARY
Our API 7K-compliant Pneumatic Spiders enable reliable casing/drill pipe/tubing suspension for onshore/offshore drilling & workover operations. Available in side-opening (Model E) or compact (Model F) configurations, they support rated loads up to 200 short tons while streamlining wellhead pipe handling. Durable slip assemblies ensure secure grip, cutting non-productive time for mid-to-heavy duty tasks.
SPECIFICATION: PNEUMATIC SPIDER SIRIES C/E
|
Model |
O.D. of Tubulars (in) |
Specification of Slip Bodies (in) |
Rated Capacity (short tons） |
|
C |
1.315 ～ 3 1/2 |
3 1/2 |
80 |
|
3 1/2 ～ 4 1/2 |
4 1/2 |
||
|
4 3/4 |
4 3/4 (integral) |
||
|
5 |
5 (integral) |
||
|
5 1/2 |
5 1/2 (integral) |
||
|
CHD |
1.315 ～ 3 1/2 |
3 1/2 |
120 |
|
3 1/2 ～ 4 1/2 |
4 1/2 |
||
|
4 3/4 |
4 3/4 (integral) |
||
|
5 |
5 (integral) |
||
|
5 1/2 |
5 1/2 (integral) |
||
|
HD |
1.315 ～ 3 1/2 |
3 1/2 |
125 |
|
3 1/2 ～ 4 1/2 |
4 1/2 |
||
|
4 3/4 |
4 3/4 (integral) |
||
|
5 |
5 (integral) |
||
|
5 1/2 |
5 1/2 (integral) |
||
|
E |
2 3/8 ～ 3 1/2 |
3 1/2 |
175 |
|
4 ～ 5 1/2 |
5 1/2 |
||
|
5 1/2 ～ 7 |
7 |
||
|
7 5/8 |
7 5/8 (integral) |
↵
|
Model |
Applicable Diameter of Tubulars(in) |
Rated Capacity (short tons) |
|
QQP/60 |
2 3/8 ～ 3 1/2 |
60 |
|
QQP/75 |
2 3/8 ～ 3 1/2 |
75 |
|
QQP/100 |
2 3/8 ～ 5 |
100 |
SPECIFICATION: PNEUMATIC SPIDER SIRIES QQP
