SIDE DOOR ELEVATOR

TECHNICAL SUMMARY

The side door elevators are critical tubular handling equipment for global drilling. Featuring single-piece side door configuration and ≥90° opening angle, they offer visual operation, anti-corrosion coating and high-load bearing capacity, adapting to offshore, desert, deep well and casing running scenarios.

1. The CD Series leads with platform-step versatility, compatible with drill collars, heavy-wall tubings and medium-size casings, serving as a flexible choice for onshore workover and conventional drilling rigs.

2. The SLX Series is engineered for large-diameter casing operations, integrated with anti-salt spray coating and reinforced load-bearing structure, ideal for offshore and desert harsh environments.

3. The CDZ Series adopts 18° tapered-step design with replaceable liners, precision-matched to tapered-joint drill pipes, delivering excellent stability for complex directional and horizontal well projects.

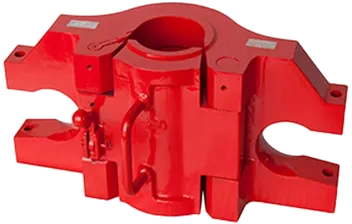

CD SERIES ELEVATOR

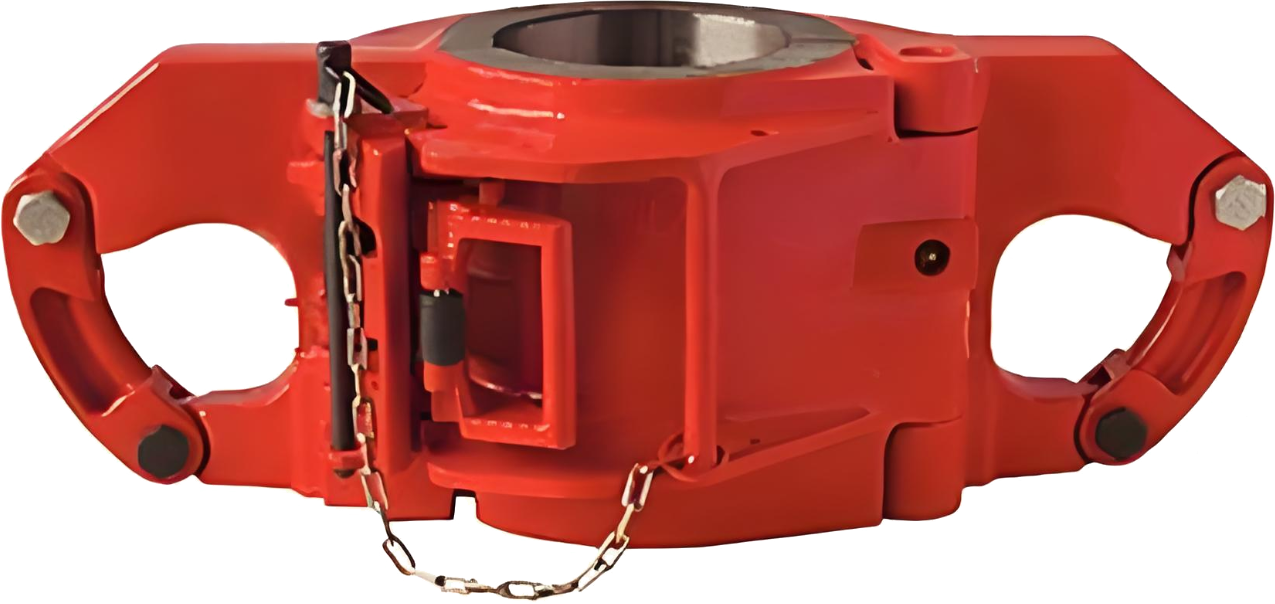

SLX SERIES ELEVATOR

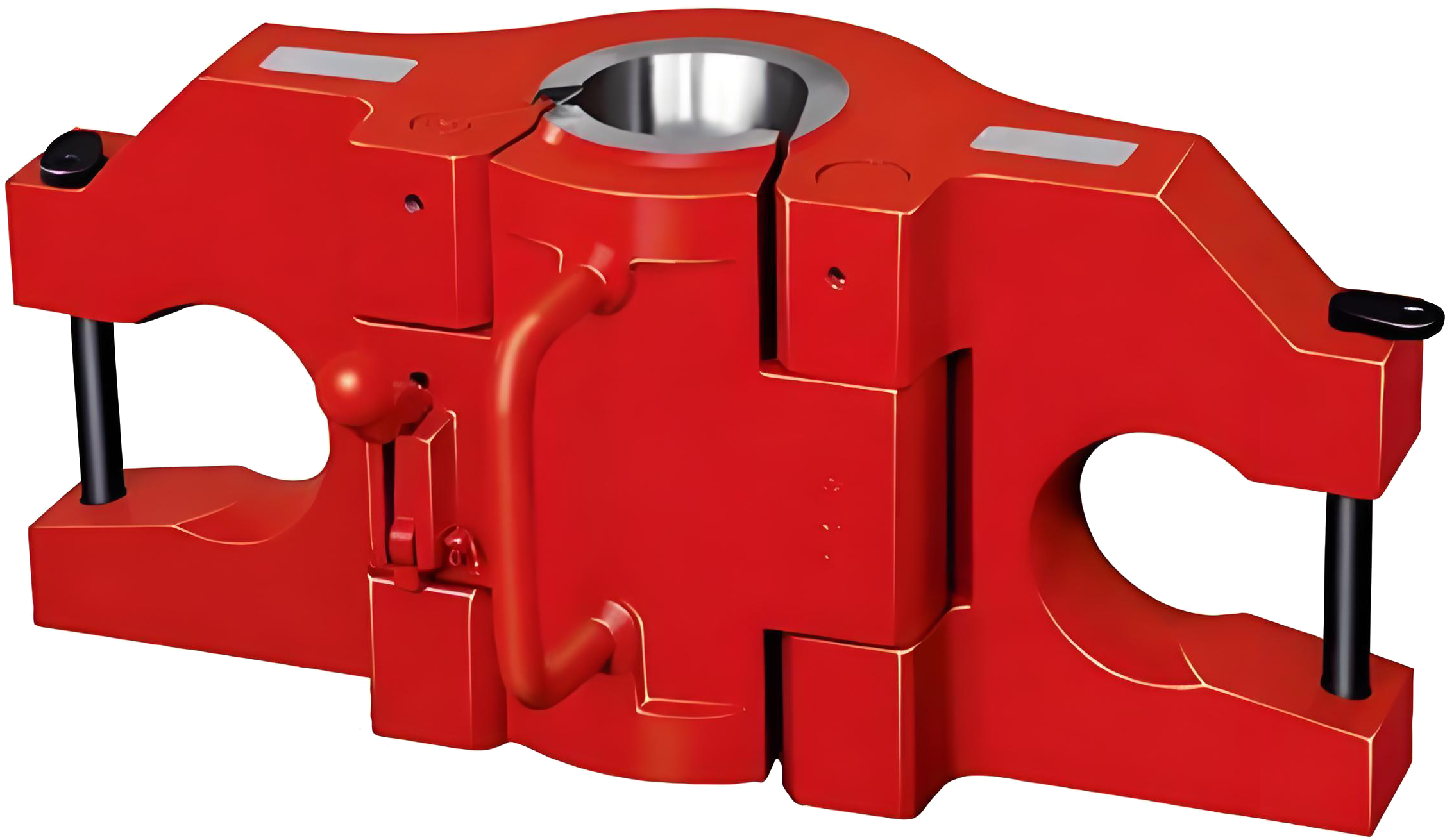

CDZ SERIES ELEVATOR

SPECIFICATION: CD SERIES ELEVATOR

Model	Size (in)	Rated Capacity (short tons)
CD-75	2 3/8 ~ 4 1/2	75
CD-150	2 3/8 ~ 14	150
CD-200	2 3/8 ~ 14	200
CD-250	2 3/8 ~ 20	250
CD-350	4 1/2 ~ 20	350
CD-500	4 1/2 ~ 20	500
CD-750	4 1/2 ~ 20	750

Model	Size (in)	Rated Capacity (short tons)
SLX-65	3 1/2 ~ 14 1/4	65
SLX-100	2 3/8 ~ 5 3/4	100
SLX-150	5 1/2 ~ 13 5/8	150
SLX-250	5 1/2 ~ 30	250
SLX-350	4 1/2 ~ 14	350
