SINGLE JOINT ELEVATOR
TECHNICAL SUMMARY
Single Joint Elevators are essential for oil & gas drilling, workover and cementing operations, designed to suspend single tubulars. Available in SJ/SP/SJX series, these compact auxiliary tools complement main elevators to boost operational efficiency.
1. The SJ Series serves general single tubing suspension, fitting small-size single tubings with user-friendly manual operation, ideal for basic workover/cementing.
2. The SJX Series is workover-exclusive, pairing with CRT to transfer pipes from V-door to well center, suiting medium-size single tubulars.
3. The SP Series (split-type) grips single tubings/casings/drill pipes with taper joints, ensuring stable holding for multi-type tapered tubular operations.

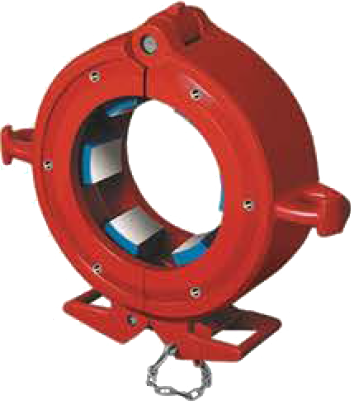

SJ SERIES
ELEVATOR
SJX SERIES
ELEVATOR

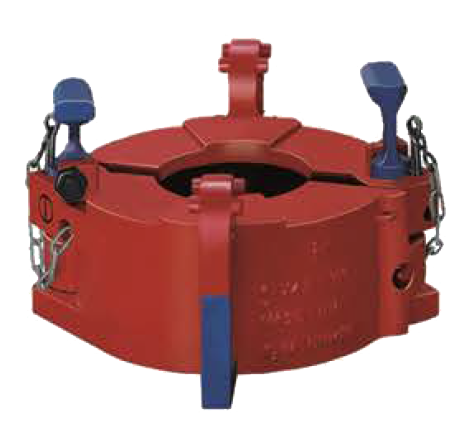

SP SERIES
ELEVATOR
-
Model
Applicable Grasping Size (in)
Rated Capacity
(short tons)
SJ-5
Tubing and Casing (NU)
2 3/8 - 5
5
Tubing (EU)
2 3/8 – 4 1/2
Drill Pipe
2 3/8 EU – 4 1/2 IEU
Casing
5 1/2 – 24 1/2
SJ-8
Casing
26.27.28.30.32.36
8
-
Model
Applicable Grasping Size (in)
Rated Capacity
(short tons)
SJX-5
Tubing and Casing (NU)
2 3/8 – 14
5
Tubing (EU)
2 3/8 – 4 1/2
-
Model
SP 18°-5
SP 12°-5
SP 5°-5
Drill Pipe 18°
2 3/8. 2 7/8. 3 1/2. 4. 4 1/2. 5. 5 1/2. 5 7/8. 6 5/8
/
/
Tubing 12°
/
2 3/8 EU. 2 7/8 EU. 3 1/2 EU. 4 EU. 4 1/2 EU
/
Tubing & Casing 5°
/
/
2 3/8 EU. 2 7/8 EU. 3 1/2 EU. 4EU. 4 1/2EU. 2 3/8. 2 7/8. 3 1/2. 4. 4. 1/2. 5. 5 1/2. 6 5/8. 7. 7 5/8. 7 3/4. 10 3/4
Rated Capacity
(short tons)
5
SPECIFICATION
SINGLE JOINT ELEVATOR
