CASING BACK-UP TONG
TECHNICAL SUMMARY
The TB series casing back-up tongs are essential auxiliary tools for casing makeup/breakout. Featuring hydraulic clamping, anti-slip jaw inserts and reinforced frame structure, the TB300 Series fits 4½ - 13⅜” medium-size casings, while the TB500 Series adapts to 14 - 24½” large-diameter casings. Designed for synchronization with master tongs, they prevent tubular rotation during operation, ensuring stable torque transmission and damage-free clamping in offshore, deep well and ultra-large casing running scenarios.

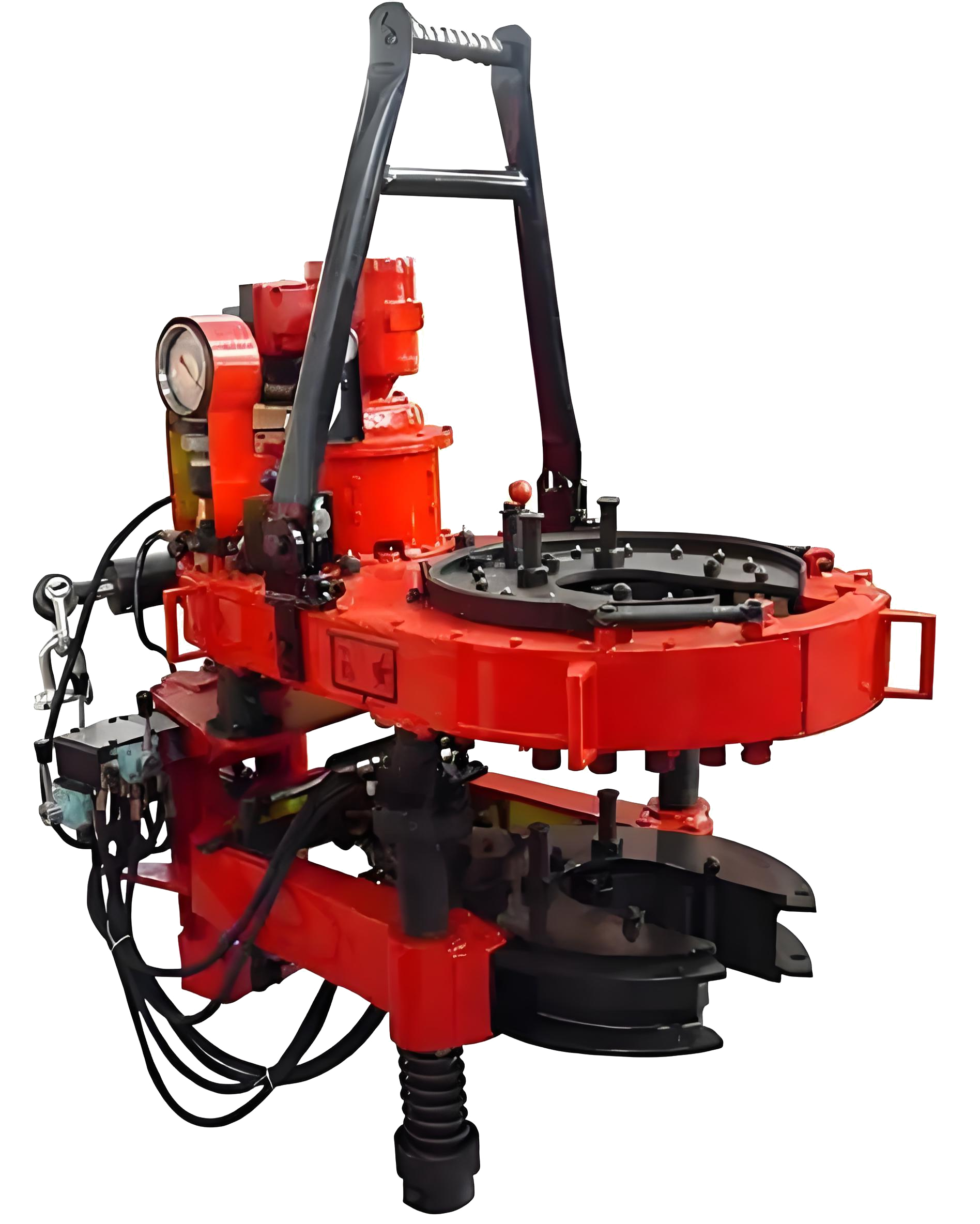

CASING BACK-UP TONG
SERIES TB
SPECIFICATION
|
Model |
TB194/16 |
TB194/16Y |
TB365/35 |
TB365/35Y |
TB365/85Y |
|
|
Size range |
mm |
120.6 ~ 194.5 |
127 ~ 365.1 |
|||
|
in |
4 ~ 7 Coupling |
4 1/2 ~ 13 3/8 Coupling |
||||
|
Air pressure |
MPa |
0.5 ~ 0.9 |
/ |
0.5 ~ 0.9 |
/ |
/ |
|
psi |
71 ~ 130 |
/ |
71 ~ 130 |
/ |
/ |
|
|
Hydraulic pressure rating |
MPa |
/ |
14 |
14 |
14 |
|
|
psi |
/ |
2030 |
2030 |
2030 |
||
|
Max. bearing |
kN·m |
16 |
35 |
85 |
||
|
ft·lbf |
11800 |
25800 |
62700 |
|||
|
Model of matching master tong |
TQ178/16 |
TQ178/16Y |
TQ340/35 |
TQ340/35Y |
TQ340/85Y |
|
|
Size |
mm |
1245*815*400 |
1300*820*280 |
1510*945*405 |
1580*980*350 |
1830*1280*380 |
|
in |
49*32*15.7 |
51.6*32.3*11 |
59.4*37.2*16 |
62.2*38.6*13.8 |
72*50.4*15 |
|
|
Weight |
kg |
360 |
420 |
480 |
640 |
700 |
|
lb |
790 |
920 |
1060 |
1400 |
1540 |
|
