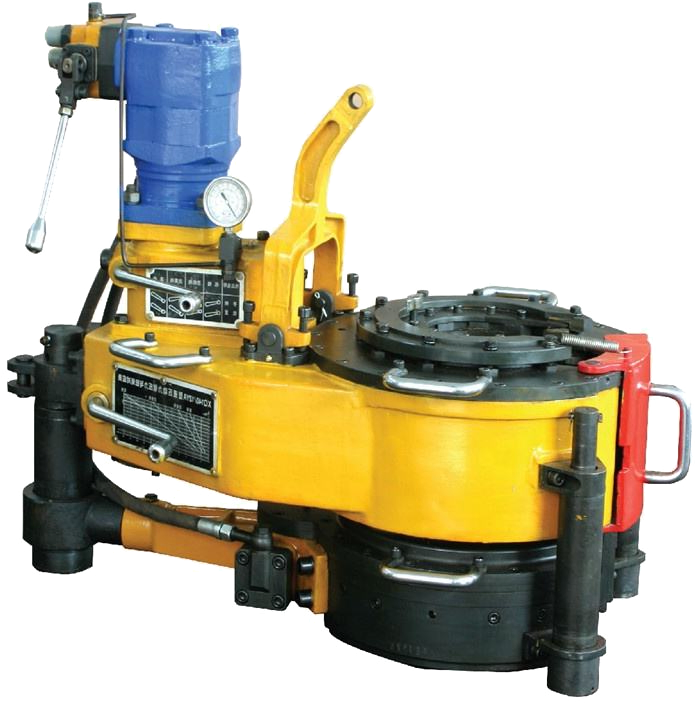

TUBING POWER TONG

TECHNICAL SUMMARY

API 7K XQ Series Tubing Power Tongs are dedicated to tubing makeup/breakout in workover operations. Equipped with hydraulic backup tongs and inner curve cam clamping mechanism, they feature dual-speed torque control (high for spinning, low for torque) and damage-resistant jaw inserts. The XQ89/3C fits 2⅜-3½” standard tubings, XQ140/20Y adapts to 2⅜-5½” thick-wall tubings, ensuring efficient, safe operations in onshore workover and cluster well maintenance.

 TUBING POWER TONG

SERIES XQ

SPECIFICATION

Model

XQ89/3YC

XQ114/6YB

XQ140/12Y

XQ140/20

XQ140/30

XQ194/40

Applicable range of main tong

mm

60-89

60-114

73-140

42-140

42-140

42-194

in

2 3/8~3 1/2

2 3/8~4 1/2

2 7/8~5 1/2

1.66~5 1/2

1.66~5 1/2

2 3/8~7 5/8

Applicable range of backup tong

mm

60-114

73-141.5

89-156

60-153.7

60-153.7

60-215.9

in

2 3/8~4 1/2

2 7/8~5 1/8

3 1/2~6 1/8

2 3/8~6.05

2 3/8~6.05

2 3/8~8 1/2

Max. Torque

N·m

3,300

6,000

12,000

20,000

30,000

40,000

ft·lbf

2,213

4,425

8,850

15,000

22,500

30,000

Speed

rpm

30-90

20-85

14-72

13.5-58

9-40

5.9-25

Rated Pressure

Mpa

10

1595

12

17.5

17.5

17.5

psi

1450

100

1740

2500

2500

2500

Max. Oil Supply

L/min

80

26

120

140

140

140

gpm

21

26

32

38

38

38

Size

mm

650x430x550

750x500x600

1024x582x539

1115x962x1665

1180x1000x1665

1400x1190x1935

in

25.6x16.9x21.7

29.5x19.7x23.6

40.3x22.9x21.2

44x38x65.3

46.5x38x65.3

55x47x76

Weight(c/w backup tong)

kg

158

220

480

840

860

1,180

lb

348

485

1,060

1,840

1,910

2,600
