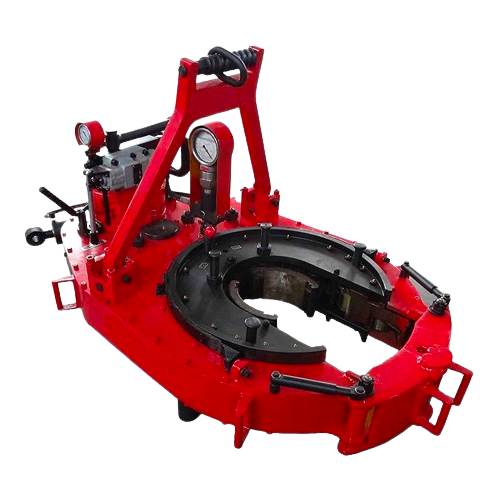

CASING POWER TONG
TECHNICAL SUMMARY
TQ Series Casing Power Tongs are specialized for large-diameter casing makeup/breakout. Featuring hydraulic drive, high-torque output (up to 500000N·m) and adjustable clamping jaws, the TQ300 Series fits 13⅜-20” casings for onshore deep wells, while the TQ500 Series adapts to 20-24½” super-large casings with reinforced frame. Equipped with torque monitoring and anti-slip inserts, they ensure stable, damage-free operations in offshore and ultra-deep well scenarios.
CASING POWER TONG
SERIES TQ
SPECIFICATION
|
Model |
TQ178/16Y |
TQ340/35Y |
TQ340/85Y |
TQ356/55Y |
TQ356/105Y |
|
|
Size range |
mm |
101.6 ~ 177.8 |
101.6 ~ 339.7 |
114.3 ~ 339.7 |
114.3 ~ 355.6 |
|
|
in |
4 ~ 7 |
4 ~ 13 3/8 |
4 ~ 13 3/8 |
4 1/2 ~ 14 |
||
|
Max. pressure |
MPa |
18 |
20 |
17.2 |
20 |
17.2 |
|
psi |
2610 |
2900 |
2500 |
2900 |
2500 |
|
|
Working flow |
L/min |
100 ~ 160 |
110 ~ 170 |
140 ~ 200 |
||
|
gpm |
26 ~ 42 |
29 ~ 45 |
37 ~ 52.8 |
|||
|
Max. torque |
kN.m |
16.3 |
35 |
85 |
55 |
105 |
|
ft.lbf |
12000 |
25800 |
62700 |
40560 |
77450 |
|
|
Speed |
rpm |
12~19.5/77~123 |
4~14/50~90 |
3.2~5/30~45 |
4~6/28~45 |
2.7~4/14.5~21 |
|
Model of matching backup tong |
TB194/16Y |
TB365/35Y |
TB365/85Y |
TB381/55Y |
/ |
|
|
Size |
mm |
1480*760*820 |
1580*900*860 |
1995*1150*680 |
1770*960*780 |
1950*1210*860 |
|
in |
58.3*29.9*32.3 |
62.2*35.4*33.9 |
78.5*45.3*26.8 |
69.7*37.8*32.7 |
76.8*47.3*33.9 |
|
|
Weight |
kg |
630 |
760 |
1700 |
1100 |
1800 |
|
lb |
1380 |
1670 |
3740 |
2420 |
3960 |
|
