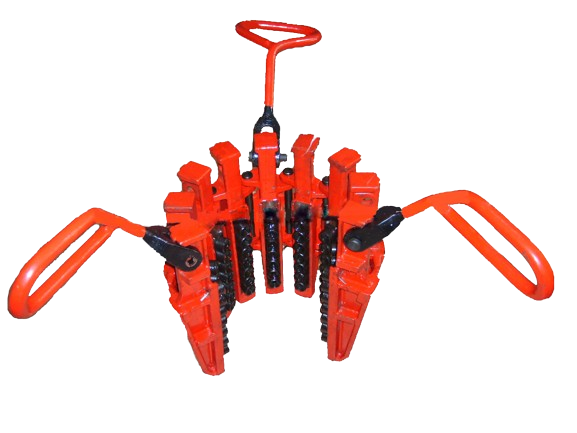

DRILL COLLAR SLIPS
TECHNICAL SUMMARY
DCS Series Drill Collar Slips are specialized clamping equipment for drill collar handling in deep and ultra-deep well operations. Adopting manual lead screw adjustment and three-piece extended slip block structure, they are compatible with 3" - 14" drill collars. Equipped with high-hardness alloy jaws (HRC58-62) and anti-slip inserts, the slips ensure strong and uniform clamping force, effectively dispersing load to avoid damage to the thick-walled drill collar. Featured with stable performance, simple operation and reliable safety, it is an ideal choice for drill collar suspension and tripping operations in high-load deep well, ultra-deep well and offshore drilling scenarios.
DRILL COLLAR SLIPS
SERIES DCS
SPECIFICATION
|
Model |
O.D. of Drill Collar |
Weight |
||
|
in |
mm |
kg |
lb |
|
|
DCS-S |
3 ~ 4 |
76.2 ~ 101.6 |
51 |
112 |
|
4 ~ 4 7/8 |
101.6 ~ 123.8 |
47 |
103 |
|
|
DCS-R |
4 1/2 ~ 6 |
114.3 ~ 152.4 |
54 |
120 |
|
5 1/2 ~ 7 |
139.7 ~ 177.8 |
51 |
112 |
|
|
DCS-L |
6 3/4 ~ 8 1/2 |
171.4 ~ 209.6 |
70 |
154 |
|
8 ~ 9 1/2 |
203.2 ~ 241.3 |
78 |
173 |
|
|
8 1/2 ~ 10 |
215.9 ~ 254 |
84 |
185 |
|
|
9 1/4 ~ 11 1/4 |
235 ~ 285.7 |
90 |
198 |
|
|
11 ~ 12 3/4 |
279.4 ~ 323.9 |
116 |
256 |
|
|
12 ~ 14 |
304.8 ~ 355.6 |
107 |
237 |
|
