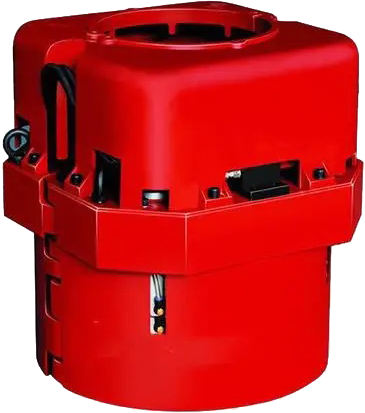

PNEUMATIC SLIPS
TECHNICAL SUMMARY
Pneumatic Slips are high-efficiency core clamping equipment for tubular makeup, breakout and suspension in drilling and workover operations. It is designed with quick-response pneumatic control mechanism, high-hardness anti-wear alloy jaws and automatic deviation-correcting structure, capable of realizing fast, stable and non-damaging clamping of tubulars. They are high-efficiency operation solutions for onshore/offshore mechanized drilling, frequent tripping operations, and medium to ultra-deep well scenarios, with the advantages of low labor intensity, fast operation speed and reliable continuous working performance.
PNEUMATIC SLIPS SERIES PS
|
Model |
Rotary Table Size (in) |
Applicable Diameter of Tubulars (in) |
Rated Capacity (short tons) |
Work Pressure (MPa) |
Max. Pressure （MPa） |
|
PS175 |
17 1/2 |
2 3/8 ~ 5 3/4 |
150 |
0.6 ~ 0.8 |
1 |
|
PS205 |
20 1/2 |
2 3/8 ~ 5 3/4 |
250 |
0.6 ~ 0.8 |
1 |
|
PS275 |
27 1/2 |
2 3/8 ~ 9 7/8 |
350 |
0.6 ~ 0.8 |
1 |
|
PS375 |
37 1/2 |
2 3/8 ~ 14 |
500 |
0.6 ~ 0.8 |
1 |
|
PS16 |
27 1/2, 37 1/2, 49 1/2 |
3 1/2 ~ 7 3/4 |
500 |
0.6 ~ 0.8 |
1 |
|
PS Portable |
23,27 1/2, 37 1/2, 49 1/2 |
2 3/8 ~ 5 1/2 |
250 - 350 |
0.6 ~ 0.8 |
1 |
|
PS slant hole |
For slant hole drilling rig |
2 7/8 ~ 13 3/8 |
250 |
0.6 ~ 0.8 |
1 |
|
PS 560 |
560mm through hole |
1.9 ~ 7 |
350 |
0.6 ~ 0.8 |
1 |
SPECIFICATION
