SAFETY CLAMP
TECHNICAL SUMMARY

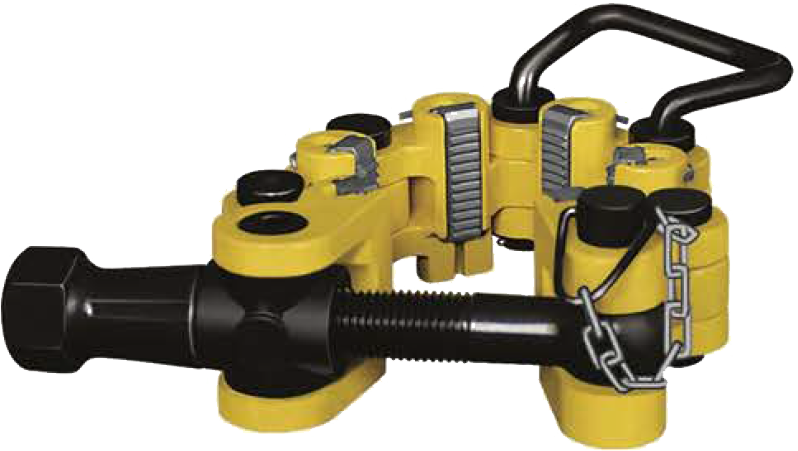

Safety Clamps are critical auxiliary safety equipment for tubular suspension in drilling and workover operations, available in two core models: MP Series and WA Series (including WA-C and WA-T sub-models). Both series are designed with quick-locking mechanism and anti-slip tooth inserts, capable of preventing tubular slipping effectively. They are essential safety safeguards for onshore/offshore deep wells, ultra-deep wells, and large-diameter casing running scenarios, with the advantages of easy installation and reliable locking performance.
SAFETY CLAMP
SERIES MP
SAFETY CLAMP
SERIES WA-C
SAFETY CLAMP
SERIES WA-T
|
Model |
Size Range (in) |
Total No. of Links |
|
MP-S |
2 7/8 ~ 4 1/8 |
7 |
|
4 ~ 5 |
8 |
|
|
MP-R |
4 1/2 ~ 5 5/8 |
7 |
|
5 1/2 ~ 7 |
8 |
|
|
6 3/4 ~ 8 1/4 |
9 |
|
|
8 ~ 9 1/4 |
10 |
|
|
9 1/4 ~ 10 1/2 |
11 |
|
|
MP-M |
10 1/2 ~ 11 1/2 |
12 |
|
11 1/2 ~ 12 1/2 |
13 |
|
|
12 1/2 ~ 13 5/8 |
14 |
|
|
13 5/8 ~ 14 3/4 |
15 |
|
|
14 3/4 ~ 15 7/8 |
16 |
|
|
MP-L |
15 7/8 ~ 17 |
17 |
|
17 ~ 18 1/8 |
18 |
|
|
18 1/8 ~ 19 3/8 |
19 |
|
|
MP-XL |
19 3/8 ~ 20 3/8 |
19 |
|
20 3/8 ~ 21 1/2 |
20 |
|
|
21 ~ 22 5/8 |
21 |
|
|
22 5/8 ~ 23 3/4 |
22 |
|
|
23 3/4 ~ 24 7/8 |
23 |
|
|
24 7/8 ~ 26 |
24 |
|
|
26 ~ 27 1/8 |
25 |
|
|
29 3/8 ~ 30 1/2 |
28 |
SPECIFICATION: SERIES MP SAFETY CLAMP
