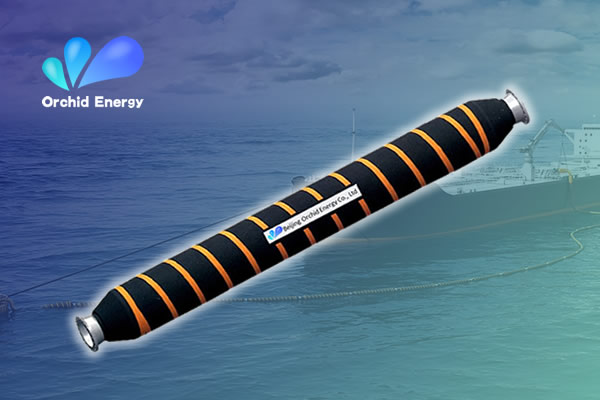

Marine Floating Mainline Rubber Oil Hose

Floating hoses are a significant piece of equipment for offshore crude oil transfer solutions, while marine floating mainline hoses are the most used of all floating hoses. Our hoses comply with the GMPHOM 2009 international standard and have obtained Chinese national patent.

>>Typical Characteristic

  1. Carcass: single carcass or double carcass;
  2. Fluid Product: crude oil and liquid petroleum products (except LNG & LPG);
  3. Working Pressure: 15 Bar or above;
  4. Ambient Temp: -29℃~52℃;
  5. Electrical continuity: electrical continuous or discontinuous;

>>Location of Hose String

漂浮主线管位置图

>>Basic Parameters

Inside Diameter (mm) Outside Diameter (mm) Working Pressure (Bar) Burst Pressure (Bar) Weight in Air (Kg) Mini. Bending Radius (m)
A B 9.1m (30ft) 10.7m (35ft) 12.2m (40ft)
150(6”) 400 320 15 75 425 475 525 0.9(3’)
200(8”) 420 370 15 75 558 623 688 1.2(4’)
250(10”) 490 430 15 75 809 910 1011 1.5(5’)
300(12”) 590 520 15 75 985 1103 1221 1.8(6’)
400(16”) 740 670 15 75 1446 1676 1906 2.4(8’)
500(20”) 850 770 15 75 2000 2262 2524 3.0(10’)
600(24”) 1010 910 15 75 2669 3042 3415 3.6(12’)
Note: Other parameters could be customized.
