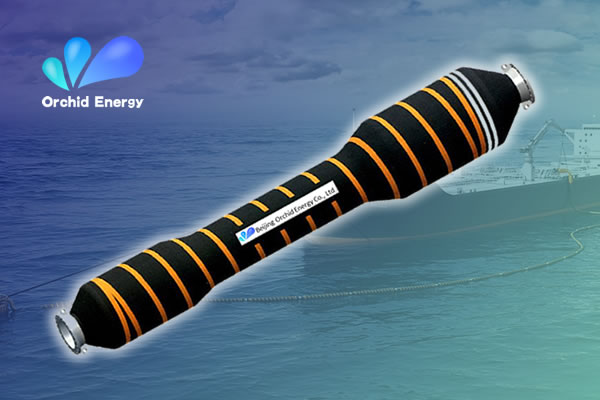

Marine Floating Tanker Rail Rubber Oil Hose (Barbell Hose)

As the name suggests, marine floating tanker rail hoses are acting as connections between the tanker and tail hoses and crossing the tanker rail. This kind of hose is thick at both ends and relatively thin in the middle, so it is often called a barbell hose or dumbbell hose. GMPHOM 2009 also need to be complied with.
Email for quotation
  • >>Typical Characteristic

    1. Carcass: single carcass or double carcass;
    2. Fluid Product: crude oil and liquid petroleum products (except LNG & LPG);
    3. Working Pressure: 15 Bar or above;
    4. Ambient Temp: -29℃~52℃;
    5. Electrical continuity: electrical continuous or discontinuous;

    >>Location of Hose String

    漂浮围栏管

    >>Basic Parameters

    Nominal Diameter (mm) Outside Diameter (mm) Working Pressure (bar) Burst Pressure (bar) Weight in Air (Kg) Mini. Bending Radius(m)
    A B C 9.1m (30ft) 10.7m (35ft) 12.2m (40ft)
    150(6”) 500 290 440 15 75 524 576 628 0.6(2.0’)
    200(8”) 560 350 530 15 75 726 817 908 0.8(2.7’)
    250(10”) 690 420 630 15 75 931 1037 1143 1.0(3.3’)
    300(12”) 810 490 640 15 75 1091 1225 1359 1.2(4.0’)
    400(16”) 1000 580 840 15 75 1650 1839 2028 1.6(5.3’)
    500(20”) 1100 720 1000 15 75 2200 2550 2800 2.0(6.7’)
    Note: Other parameters could be customized.
