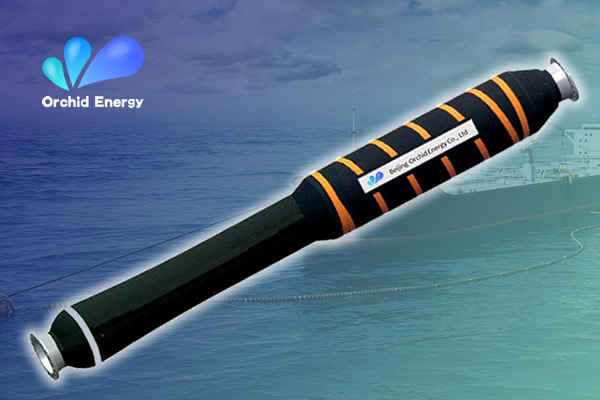

Marine Half Floating One End Reinforced Rubber Oil Hose

As the first off buoy hose, marine half floating one end reinforced hose is with less quantities of the hose string, but its effects cannot be ignored. Its reinforced end can well withstand the multi-directional tensile force caused by ocean currents of hose string and ensure its normal operation.

>>Typical Characteristic

  1. Carcass: single carcass or double carcass;
  2. Fluid Product: crude oil and liquid petroleum products (except LNG & LPG);
  3. Working Pressure: 15 Bar or above;
  4. Ambient Temp: -29℃~52℃;
  5. Electrical continuity: electrical continuous or discontinuous;

>>Location of Hose String

一端增强管位置图

>>Basic Parameters

Nominal Diameter (mm) Outside Diameter (mm) Working Pressure (bar) Burst Pressure (bar) Weight in Air (Kg) Mini. Bending Radius (m)
A B C D 9.1m (30ft) 10.7m (35ft) 12.2m (40ft)
150(6”) 340 220 340 410 15 45 428 478 528 0.9(3’)
200(8”) 400 270 400 480 15 45 556 623 690 1.2(4’)
250(10”) 460 330 480 560 15 45 840 941 1042 1.5(5’)
300(12”) 520 390 570 650 15 45 1021 1143 1265 1.8(6’)
400(16”) 600 530 760 850 15 45 1894 2164 2434 2.4(8’)
500(20”) 760 630 880 960 15 45 2450 2740 3030 3.0(10’)
600(24”) 850 740 1050 1130 15 45 3615 4000 4385 3.6(12’)
Note: Other parameters could be customized.

>>Physical Photos

一端增强管图
