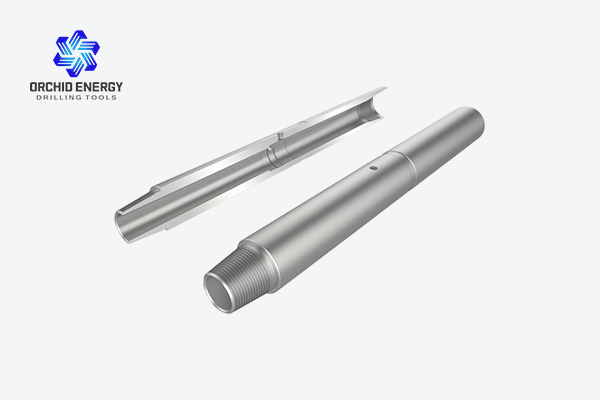

Universal Bottom Hole Orientation Sub (UBHO Sub)

The Universal Bottom Hole Orientation (UBHO) Sub is manufactured from high quality AISI 4145-modified fully heat treated alloy steel or non magnetic material like P530,P550 to provide a non magnetic environment for drill string.

>>Introduction

The UBHO sub is used in a directional drilling BHA. The UBHO is often referred to as a mule shoe sub. This tool is typically run directly below a drill collar and contains a landing sleeve for directional survey equipment. The UBHO is designed and used to establish the “high side of the tool”, which is essential for knowing the tools orientation in the wellbore.

拼图

UBHO also stands for:

  1. Universal Bent Sub Orientation;
  2. Universal Bottom Hole Orientation;
  3. Universal Bore Hole Orientation;

Various OD sizes are available to meet specific directional drilling applications.

>>Parameter Table

UBHO SUB Technical Parameters
Size Connection Remarks
4 3/4" Pin and box 3 1/2”IF Used for small muleshoe
6 1/2” Pin and box 4 1/2”IF Used for medium muleshoe
6 3/4” Pin and box 4 1/2”IF Used for large muleshoe
8” Pin and box 6 5/8”REG Used for large muleshoe
Non magnetic UBHO SUB Technical Parameters
Size Connection Remarks
4 3/4" Pin and box 3 1/2”IF Used for small muleshoe
6 1/2” Pin and box 4 1/2”IF Used for medium muleshoe
6 1/2” Pin and box 4 1/2”IF Used for medium muleshoe
6 3/4” Pin and box 4 1/2”IF Used for large muleshoe
8” Pin and box 6 5/8”REG Used for large muleshoe
