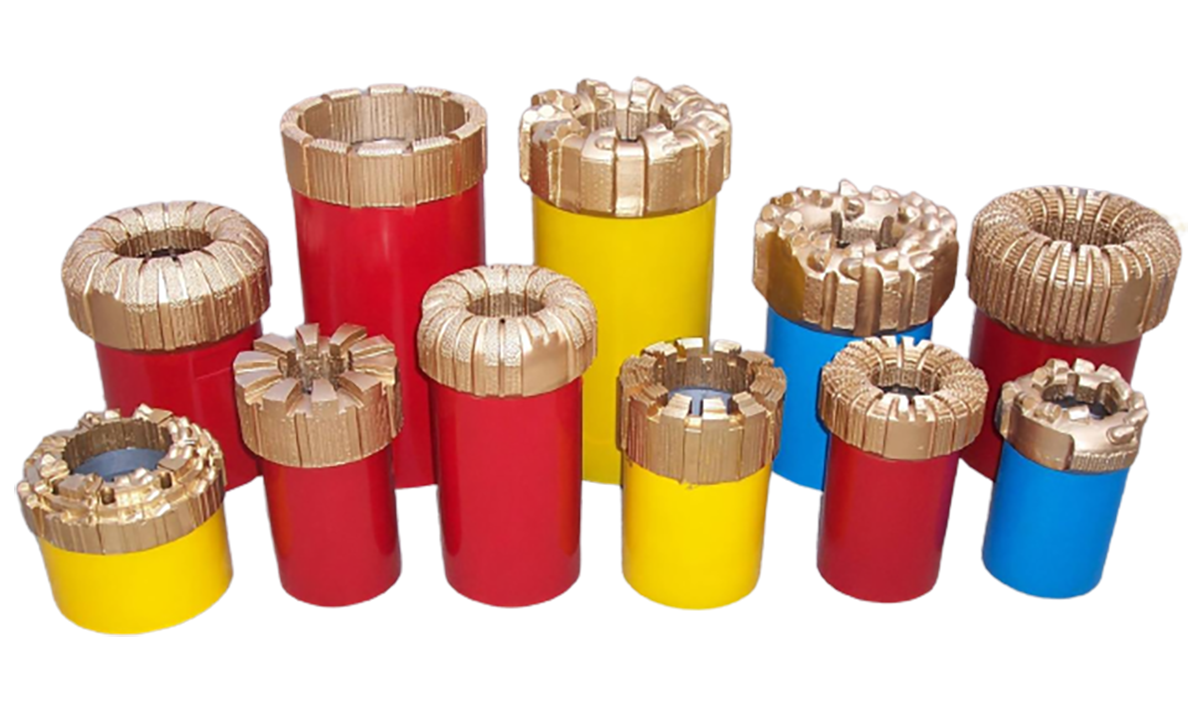

CORE BIT
TECHNICAL SUMMARY
A core bit is a drilling tool with a hole through the center that removes sediment rock and allows the core pedestal to pass through the bit and into the core barrel. The Ocean Drilling Program (ODP) employs different coring systems and bits to obtain continuous cores in all types of oceanic sediments and igneous basement.
There are three coring systems. Each uses different bottom-hole assemblies (BHA) and types of core bits
1. Advanced Piston Corer (APC)
2. Rotary Core Barrel (RCB)
3. Advanced Diamond Core Barrel (ADCB)
There are three coring systems. Each uses different bottom-hole assemblies (BHA) and types of core bits
1. Advanced Piston Corer (APC)
2. Rotary Core Barrel (RCB)
3. Advanced Diamond Core Barrel (ADCB)
TYPES OF CORE BIT
Core bits are classified according to the cutting structure and type of bearings. There are five basic types of bits used based on their function or structure: drag, scraper, abrasive, roller cone, and hammer.
▪️Drag-type bits have a flat chisel-like surface to plane away soft formations (i.e., clay and chalk).
▪️Polycrystalline diamond compact (PDC) bits use multiple tungsten carbide studs with artificial diamond cutting surfaces in a claw like scraping action to remove soft formations (e.g., clay and chalk) up to hard claystone and limestone.
▪️Diamond bits use either surface-set or impregnated diamonds to abrade (i.e., sanding-like process) hard formations like shale or basalt.
▪️Roller cone bits rotate cone-shaped rollers encrusted with teeth to remove soft to hard formations through a combination of scraping and crushing processes.
▪️Hammer bits use percussion to crush the hard rock around the core.
▪️Drag-type bits have a flat chisel-like surface to plane away soft formations (i.e., clay and chalk).
▪️Polycrystalline diamond compact (PDC) bits use multiple tungsten carbide studs with artificial diamond cutting surfaces in a claw like scraping action to remove soft formations (e.g., clay and chalk) up to hard claystone and limestone.
▪️Diamond bits use either surface-set or impregnated diamonds to abrade (i.e., sanding-like process) hard formations like shale or basalt.
▪️Roller cone bits rotate cone-shaped rollers encrusted with teeth to remove soft to hard formations through a combination of scraping and crushing processes.
▪️Hammer bits use percussion to crush the hard rock around the core.
CORE BIT
SPECIFICATION
|
Size |
O.D |
I.D |
||
|
Inch |
mm |
Inch |
mm |
|
|
AQ |
1.880/1.870 |
47.75/47.50 |
1.607/1.057 |
27.1/26.85 |
|
BQ |
2.350/2.340 |
59.69/59.44 |
1.438/1.428 |
36.52/36.27 |
|
HQ |
2.970/2.960 |
75.44/75.19 |
1.880/1.870 |
47.75/47.50 |
|
NQ |
3.770/3.775 |
95.76/95.38 |
2.505/2.495 |
63.63/63.38 |
|
PQ |
4.815/4.795 |
122.30/121.80 |
3.350/3.340 |
85.09/84.84 |
