ReleasingandCirculatingOvershot
Releasing and Circulating Overshot
LT overshot is one of the fishing tools which is fishing the pipes externally. It can catch drill collar, drill pipe, tubing, subs and other pipes. Because of the seals, the fluid can circulate with the high pump pressure after catching the fish. The top of the fish will be milled by under mill shoe.
-
1. Introduction

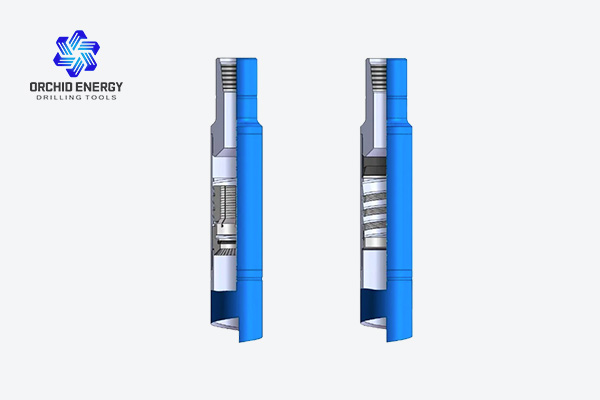

The releasing and circulating overshot can also work with jars to catch the stuck fishes. If the catched fish can’t be release from stucking ,we could release the overshot and lifting the drill string.Overshot consists of three outside parts: top sub, bowl, and standard guide. The basic overshot may be dressed with either of two sets of internal parts, if the fish diameter is near the maximum catch of the overshot, a spiral grapple, spiral grapple control, and type “A” packer are used. If the fish diameter is considerably below maximum catch size (½” or more) a basket grapple and a mill control packer are used.
2. Accessories
Releasing and circulating overshot can be equipped with a wide range of accessories to meet a variety of complex fishing environmental. The picture above shows some common accessories to choose from, which are within the capabilities of Orchid Energy.
-
-
-
Casing Cutter
ND type hydraulic casing cutter uses hydraulic pressure to push the cutter to cut the pipe string from the inner hole. One size OD casing cutter can cut different sizes string pipe through by changing the cutters. It has the advantages of large cutting range.¥ 0.00Details
-
Reverse Circulation Junk Basket
Reverse Circulation Junk Basket, which is also known as RCJB, is designed to remove all types of small junk objects from the hole. The tool’s main feature eliminates pulling a wet string. Even when the tool is fitted with a magnet insert, reverse circulation is maintained.¥ 0.00Details
-
Releasing Spear
LM-T releasing spear is one of fishing tools to fishing internally. It is mainly used to catch drill pipe, casing, tubing and other tubular junks during oil and gas well repairing. It can be used with other tools such as casing cutter, jars. If the fish is struck, releasing the spear and lifting the drilling tools.¥ 0.00Details
-
Washover Pipe
Washover pipe is a necessary tool in washover operation which can relieve all kinds of sticking in the well. The function is rotating washover, flush the sand and sand salt, hot wash to stuck, etc. Orchid Energy Co offers a wide range of washover pipes in the oil and gas industry, which are high-quality and economic.¥ 0.00Details
-
