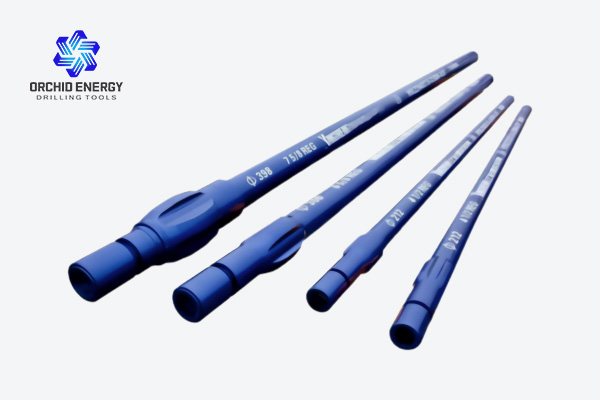

Drilling Motors

Orchid Energy drilling motors have established a reputation for performance, reliability and excellent service. We provide a versatile range size and types of motors for directional, horizontal, straight drilling, performance drilling, coil tubing and HDD drilling conditions.

>>Introduction

结构图
Drilling Motor Structure Assembly

Drilling motor is a positive displacement motor(PDM). The high drilling fluid enters into the motor converting high fluid power to mechanical energy and the rotor drives the shaft and bit rotating. We can produce drilling motors for hole size from 1 7/8” to 26”. Motor size are as of 1 11/16”(43mm), 2 1/8”(54mm), 2 7/8”(73mm), 3 1/2”(89mm), 3 3/4”(95mm), 4 3/4”(120mm), 5”(127mm),5 7/8”(150mm), 6 1/4”(159mm), 6 1/2”(165mm), 6 3/4”(172mm), 7”(178mm),7 1/4”(185mm), 7 3/4”(197mm), 8”(203mm), 8 1/2”(216mm), 9 5/8”(244mm) 11 1/4”(286mm). We also can design and manufacture according to customers' special requirements.

>>Classification

1.Bent Housing Motor

We can provide fixed bend motor, single bend motor, double bend motor and adjustable bend housing motors.(adjustable angle from 0-3°) which can meet different kickoff requirement,

2. High Temperature Motor

Drilling motor Temp. range are ≤120℃,120-150℃ and 150-175℃which can meet different well running condition even in very harshest environment.

3.Hollow Rotor Motor

To increase hydraulic horsepower and upward speed of mud stream, rotor is manufactured into hollow rotor with nozzles. Thus, motor total flow rate is equal to the sum of the flow rate through seal cavity and rotor.

4. Even Wall Motor

Even wall motor not only enhances the impact resistance and deformation resistance of the rubber on the inner surface of the stator housing, but also the rubber will not cause problems such as rubber aging and rubber drop during the vulcanization process, so that the rubber vulcanization effect can be achieved better to ensure the service life of drilling motor. Under the same pressure drop, the size of the motor can be shortened and mud motor kick off rate can be further improved.

5.Rotor Coating Technology

Regular chrome coating could be adopted as clients requirement. Also we can do Tungsten carbide coating on rotor surface which can enable the rotor to work normally in saturated saltwater mud and to prevent the corrosion of chrome plated rotor in saturated saltwater.

>>Benefits & Features

  1. All drilling Motors are equipped with a rotor catch sub;
  2. Drilling Motors can be equipped with float top sub or dump sub or special catch sub;
  3. Drilling motor can be used in WBM(water based mud)&OBM(oil based mud);
  4. Equipped with 0 – 3° Adjustable Housings;
  5. Screw on Stabilizer’s available or fixed Stabilizer or blank stabilizer;
  6. Stronger bearing mandrel for use with high torque power sections;

>>Parameter Table

Model Unit 5LZ43×7.0V 5LZ54×7.0VI 5LZ60×7.0V 5LZ73×7.0III 5LZ73×7.0V 5LZ89×7.0III 5LZ95×7.0IV 5LZ95×7.0V
Bit Size in 1 7/8-3 2 3/8-3 1/2 3 1/8-4 3/8 3 3/8-4 3/8 3 3/8-4 3/8 4 1/2-6 4 5/8-6 4 5/8-6
OD mm 44 56 60.5 74 74 89 96 96
ABH ° - - - 0-3 0-3 0-3 0-4 0-4
Lobe   5/6 5/6 5/6 5/6 5/6 5/6 5/6 5/6
Stage   5 6 5 3 5 3 4 5
Pressure Mpa 4 4.8 4 2.4 4 2.4 3.2 4
Flow Rate l/s 1-1.7-2.5 1.3-2.2-3.2 1.3-2.2-3.2 2-5-7 3-6-9 3-6.5-10 5-8-12 5.4-9.3-13.2
Flow Per Revolution l/r  0.27 0.34 0.56 0.9 1.07 1.53 2.5 2.6
Bit Speed rpm 222-378-555 230-390-565 140-237-344 133-333-467 168-336-504 118-255-392 120-192-288 126-217-308
Torque N·m 150 320 438 320 820 730 1590 2070
Max.torque N·m 225 480 657 480 1230 1095 2385 3105
Output Power Kw 2.6-6.4 4.4-10.8 6.4-15.7 4.8-17 15-43 10-30 20-48 27-66
Weight on Bit KN 2.5 4 4 15 15 20 25 25
Max. Weight
on Bit
KN 6 8 8 20 20 30 50 50
Connection up 1 AMMT 1 1/2 REG 1 1/2 REG 2 3/8 TBG 2 3/8 TBG 2 3/8 REG 2 7/8 REG 2 7/8 REG
down  1 AMMT 1 1/2 REG 1 1/2 REG 2 3/8 REG 2 3/8 REG 2 3/8 REG 2 7/8 REG 2 7/8 REG
Length mm 2967 3587 4153 3670 4189 3430 4835 5630
Weight Kg 25 56 64 85 100 128 160 170
Model Unit 5LZ120×7.0IV 5LZ120×7.0V 7LZ120×7.0III 5LZ127×7.0V 5LZ127×7.0VIII 7LZ127×7.0IV 7LZ165×7.0V 5LZ165×7.0V
Bit Size in 5 7/8-7 7/8 5 7/8-7 7/8 5 7/8-7 7/8 5 7/8-7 7/8 5 7/8-7 7/8 5 7/8-7 7/8 8 3/8-9 7/8 8 3/8-9 7/8
OD mm 122   122   122   127 127 127 167 167
ABH ° 0-3 0-3 0-3 0-3 0-3 0-3 0-3 0-3
Lobe   5/6 5/6 7/8 5/6 5/6 7/8 7/8 5/6
Stage   4 5 3 5 8 4 5 5
Pressure Mpa 3.6 4 3 4 6.5 3.2 4 4
Flow Rate l/s 10-14-18 9-13-16 10-15-19 9-13-16   9.5-13-19 9-14-18  21.5-30-38   18-24-28
Flow Per Revolution l/r 5 4.8 7.6 6 3.9 6.9 14.3 10
Bit Speed rpm 120-170-220 110-162-200 80-118-150 90-130-160 145-198-290 78-121-156 90-126-160 106-142-165
Torque N·m 2800 2280 3680 3040 4160 3580 7400 6200
Max.torque N·m 4900 3990 6620 5320 6240 6265 13320 10850
Output Power Kw 40-72 36-64 32-62 36-64   63-126 41-81 86-152 72-112
Weight on Bit KN 40 40 40 50 50 50 100 100
Max. Weight
on Bit
KN 60 60 60 70 70 70 160 160
Connection up 3 1/2REG 3 1/2REG 3 1/2REG 3 1/2REG 3 1/2REG 3 1/2REG 4 1/2REG 4 1/2REG
down 3 1/2REG 3 1/2REG 3 1/2REG 3 1/2REG 3 1/2REG 3 1/2REG 4 1/2REG 4 1/2REG
Length mm 6517 5715 7125 6547 8431 6547 8233 8317
Weight Kg 374 333 409 441 566 441 1028 1044
Model Unit 5LZ172×7.0V 5LZ172×7.0VI 7LZ172×7.0V 7LZ172×7.0VI 5LZ197×7.0V 5LZ197×7.0VI 7LZ197×7.0IV 7LZ197×7.0V
Bit Size  in 8 3/8-9 7/8 8 3/8-9 7/8 8 3/8-9 7/8 8 3/8-9 7/8 9 7/8-12 1/4 9 7/8-12 1/4 9 7/8-12 1/4 9 7/8-12 1/4
OD mm 174 174 174 174 197 197 197 197
ABH ° 0-3 0-3 0-3 0-3 0-3 0-3 0-3 0-3
Lobe   5/6 5/6 7/8 7/8 5/6 5/6 7/8 7/8
Stage   5 6 5 6 5 6 4 5
Pressure Mpa 4 4.8 4 4.8 4 5 3.2 4
Flow Rate l/s 24-28-32   24-28-32   25-32-36  25-32-36   25-34-40   25-40-55 30-45-65 25-34-40
Flow Per Revolution l/r 12 12 15 15 15 13 25.7 16.8
Bit Speed rpm 120-140-160 120-140-160 100-128-144 100-128-144 100-136-160 115-183-250 70-105-150 90-120-144
Torque N·m 6600 7800 7860 9500 7800 10000 11000 8500
Max.torque  N·m 10560 12480 13780 16650 14040 15000 19800 14875
Output Power Kw 96-142 115-146  102-152   120-182   100-160 120-192 135-192   112-160
Weight on Bit KN 100 100 100 100 170 170 170 170
Max. Weight on Bit KN 180 180 180 180 250 250 250 250
Connection up 4 1/2REG 4 1/2REG 4 1/2REG 4 1/2REG 6 5/8REG 6 5/8REG 6 5/8REG 6 5/8REG
down 4 1/2REG 4 1/2REG 4 1/2REG 4 1/2REG 6 5/8REG 6 5/8REG 6 5/8REG 6 5/8REG
Length mm 8180 8780 8160 8780 8066 8833 8433 8066
Weight Kg 1122 1168 1138 1246 1392 1454 1483 1392
Model Unit 5LZ203×7.0V 5LZ203×7.0VI 7LZ203×7.0IV 7LZ203×7.0V 7LZ244×7.0IV 5LZ244×7.0V 5LZ286×7.0IV 5LZ286×7.0V
Bit Size in 9 7/8-12 1/4 9 7/8-12 1/4 9 7/8-12 1/4 9 7/8-12 1/4 12 1/4-17 1/2 12 1/4-17 1/2 14 3/4-26 14 3/4-26
OD mm 203 203 203 203 244 244 286 286
ABH ° 0-3 0-3 0-3 0-3 0-3 0-3 0-3 0-3
Lobe   5/6 5/6 7/8 7/8 7/8 5/6 5/6 5/6
Stage   5 6 4 5 4 5 4 5
Pressure    Mpa 4 5 3.2 4 3.2 4 3.2 4
Flow Rate l/s 25-34-40   25-40-55 30-45-65 25-34-40   40-53-65   40-50-60   55-65-80   37.5-55-70
Flow Per Revolution l/r 15 13.1 25.7 16.8 33.3 25.4 40.2 31.5
Bit Speed rpm 100-136-160 115-183-250 70-105-150 90-120-144 72-95-117 95-118-140 82-97-118 71-105-133
Torque N·m 7800 10000 11000 8500 17000 14700 18800 18500
Max.torque N·m 14040 15000 19800 14875 29750 25730 33840 33300
Output Power Kw 100-160 120-192  135-192 112-160 128-228   134-200 176-268 110-201
Weight on Bit KN 170 170 170 170 180 180 200 200
Max. Weight on Bit KN 250 250 250 250 280 280 300 300
Connection up 6 5/8REG 6 5/8REG 6 5/8REG 6 5/8REG 6 5/8REG 6 5/8REG 7 5/8REG 7 5/8REG
down 6 5/8REG 6 5/8REG 6 5/8REG 6 5/8REG 6 5/8REG 6 5/8REG 7 5/8REG 7 5/8REG
Length mm 8066 8833 8433 8066 9398 9188 9130 8750
Weight Kg 1462 1585 1563 1520 2409 2289 2900 2817

>>Packaging & Storage

库存图
